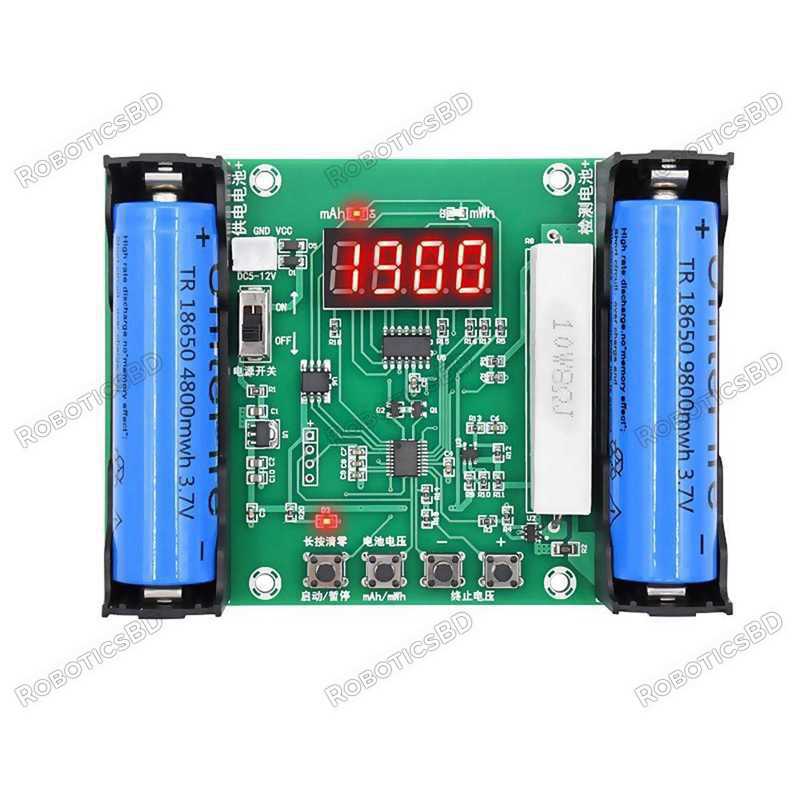

XH-M240 Battery Capacity Tester

RBD-1556
  • Model: XH-M240
  • Display accuracy: 0.1
  • Measurement accuracy: 1mAH
  • Power supply: DC 5V-12V
  • Standby current: 5-7mA
BDT 990
Quantity
In-Stock

1 person has purchased this item
23 people recently added this item to the cart
Only 5 items left in stock
notifications Notify Me
  • Store Pickup Available! Store Pickup Available!
  • Free Ship Over 5000 BDT Free Ship Over 5000 BDT
  • Quality Product Quality Product
  • No Warranty No Warranty
  • No Replacement No Replacement

It is a Lithium battery capacity tester. It is used to test the voltage, discharge capacity and discharge energy of a 18650 lithium battery. RoboticsBD

This battery capacity tester is used to test the voltage, discharge capacity, and discharge energy of a 18650 lithium battery. With a dual working power supply, it has high working efficiency and saves your time. It can display discharge capacity and discharge energy. And it supports a parameter memory function, convenient for checking next time.  Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Note: Battery is not included with this product.

Features:

  1. Dual working power supply
  2. 18650 battery special tester
  3. Support display discharge capacity
  4. Support display discharge energy
  5. Support parameter memory function
  6. Made of high-quality electronic components
  7. Solid, durable, good conductivity and performance
  8. Long service life

Specification:

  1. Work Voltage:DC 5V~12V or 18650 battery
  2. Stand-by current:5~7mA
  3. Discharge current:500mA
  4. Load power: 10W 8ohm
  5. Measuring voltage accuracy:0.1V
  6. Discharge capacity accuracy:1mAh
  7. Discharge energy accuracy:1mWh
  8. Work Temperature:-25℃~85℃
  9. Work Humidity:5%~95%RH
  10. Size:110*80*25mm

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Model XH-M240
Display Accuracy 0.1
Measurement Accuracy 1mAH
Recommended Power Supply DC 5-12V
Standby Current 5-7mA
Discharge Current 500mA
Load Power 10W, 8Ω
Installation Hole 3mm
Color Green
Length (mm) 110
Width (mm) 80
Height (mm) 25
Weight (gm) 50
Shipment Weight 0.05 kg
Shipment Dimensions 12 × 8 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation(How to use):

  1. Connect work voltage DC 5V~12V from white XH2.54-2P socket or install a 18650 battery at left battery socket.
  2. Install a measured 18650 battery at the right battery socket.
  3. Turn on the power supply switch. Then the screen will display the current battery voltage.
  4. Set discharge stop voltage. Press button + and - to set discharge stop voltage. Parameters can be saved automatically. It is recommended that the 18650 battery stop discharge voltage be set to 3.5V.
  5. Short press the first(left) button to start measuring. Then the LED indicator D3 will turn ON.
  6. Short press the second button to switch display capacity(mAh), energy(mWh) and voltage.
  7. Long press first(left) button to clear display capacity(mAh) and energy(mWh).
  8. The battery is tested and shows the battery test value when D3 LED indicator start blinking.

Package Includes:

1 x XH-M240 Battery Capacity Tester mAh mWh for 18650 Lithium Battery.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

What is the price of XH-M240 Battery Capacity Tester in Bangladesh?

The latest price of XH-M240 Battery Capacity Tester in Bangladesh is BDT 990 You can buy the XH-M240 Battery Capacity Tester at best price from our RoboticsBD or visit RoboticsBD Office.

Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product.

Product Images are shown for illustrative purposes only and may differ from the actual product.
