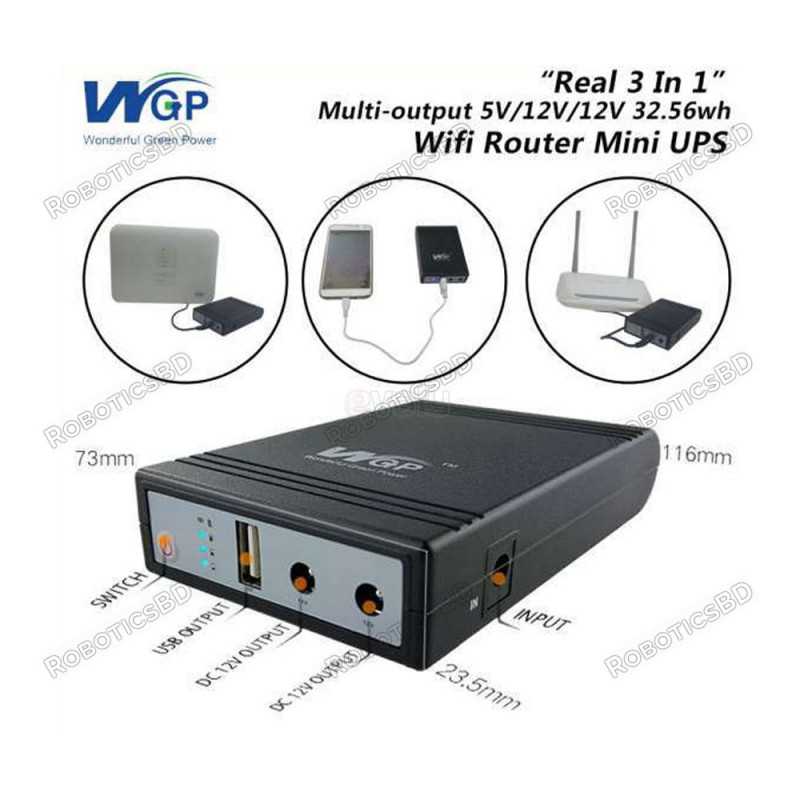

WGP Mini UPS is a DC uninterruptible power supply which can store power; It can provide hours of operation during a power failure at a low price vs a traditional UPS. RoboticsBD
It is designed to provide emergency power backup to all kinds of DC power equipment such as routers, modems, set-top boxes, VOIP phone systems, surveillance systems, alarm systems, personal communication systems, radios, digital cameras, POS, Bluetooth devices, smart cards, and many other critical telecom equipment. RoboticsBD
This WGP Mini UPS will provide 6 hours of Backup for your Router and ONU during load shading. You can still use Broadband Internet when there is a power interruption. You can use this Mini UPS for your CC camera or Router. WGP Mini UPS is an ideal solution for the village or where load shading is a daily part of life. Featured By RoboticsBD. This WGP Mini UPS also protects the Router and ONU from the Thunder surge voltage.
WGP mini UPS is a small device that allows your modem router to keep running when the primary power source is lost. It also provides protection from power surges. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Note: Product images/ Components brand may vary from actual product as our stock rotates.
WGP Mini UPS is a DC uninterruptible power supply which can store power; It can provide hours of operation during a power failure at a low price vs a traditional UPS.
It is designed to provide emergency power backup to all kinds of DC power equipment such as routers, modems, set-top boxes, VOIP phone systems, surveillance systems, alarm systems, personal communication systems, radios, digital cameras, POS, Bluetooth devices, smart cards, and many other critical telecom equipment.
This new 5V 2A WGP mini UPS offers guaranteed surge and lightning protection for attached devices, by connecting your valuable devices, you are ensuring these investments against potentially irreversible damage, when the power goes out, the dc mini ups will power critical devices including home networking equipment, allowing you to maintain your internet connection.this allow you to work productively, avoid the loss of valuable data, and safety shut down equipment.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
General Specification | |
Item | 5v 12v 12v router ups |
Model | WGP103-38.48wh |
Rated Capacity | 38.48wh |
Backup time | 6-12 hours |
Accessories 1 | DC cable*2 + USB-DC cable*1 |
Accessories 2 | Transfer joint*3 |
Input Voltage | 12V±5% |
Input Current | 350mA + load current |
Output Voltage | 5V±5%,9V±5%, 12V±5% |
Output Current | ≤2000mA, ≤1000mA, ≤1000mA |
Shipment Weight | 0.356 kg |
Shipment Dimensions | 21 × 8 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1x User Manual 1 pcs
2x DC to DC cable 2 Pcs
1x USB to Micro cable.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of WGP Mini UPS - Router + ONU Backup Output 5V, 12V, 12V in Bangladesh is BDT 2,690 You can buy the WGP Mini UPS - Router + ONU Backup Output 5V, 12V, 12V at best price from our RoboticsBD or visit RoboticsBD Office.
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
Product Images are shown for illustrative purposes only and may differ from the actual product. |
