BMS (Battery Management System) – a battery management system that is designed to monitor the status of batteries, control the process of charging/discharging the battery, etc. RoboticsBD

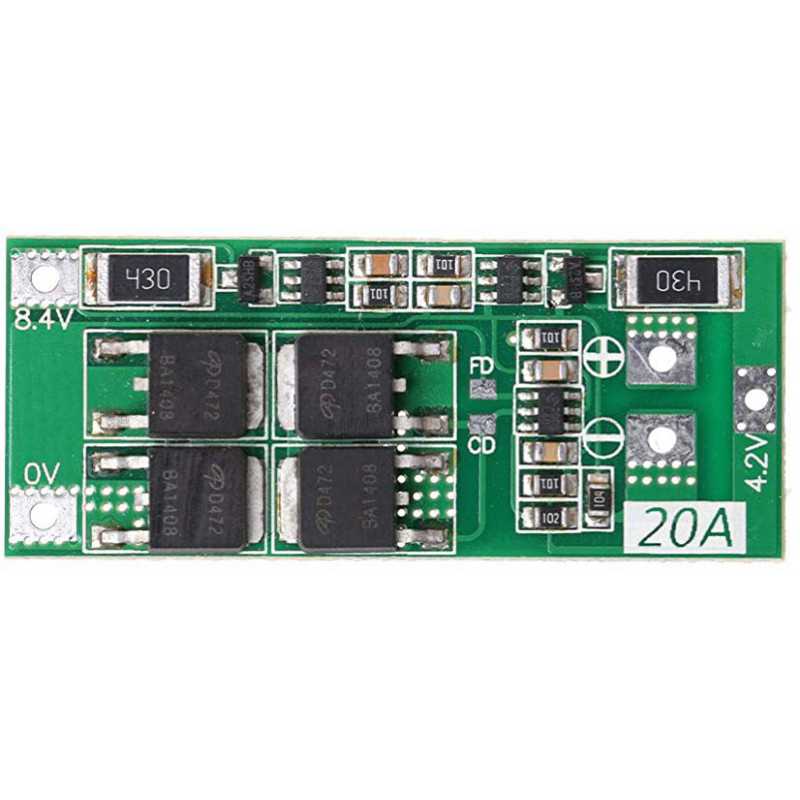

Two batteries (18650) can be connected simultaneously to the HX-2S-D20 charge-discharge controller module. The module has protection against short circuit, overcharge and over-discharge. One of the functions of the charge controller is to turn off the power supply for the batteries when the maximum capacity of at least one battery is reached. This BMS controller is designed for more than 30,000 hours of operation. The maximum allowable current is 20 A. RoboticsBD
B+ : Battery positive pole
B- : Battery negative pole
BM : Mid-point of a battery assembly
P- : Negative charge / discharge terminal
P+ :Positive charge/discharge terminal
If the maximum permissible value of the supply voltage is exceeded, the charge controller activates the “protection” mode. In order to restore the module, it is necessary to re-apply voltage to the input of the BMS board or wait a while until the charge controller automatically disables protection.
Power is supplied to the module from an external power source. The voltage range of the module is from 7.4 to 8.4 V. For charging, you can use a step-up voltage converter with a current limiter. Please note that this module is not a charger.
| General Specification | |
| Model | HX-2S-D20 |
| Over Charge Voltage Range | 4.25-4.35 V + 0.05 V |
| Over Voltage Range | 2.5-3.0 V + 0.05 V |
| Max. Operating Current | 13 A |
| Max. Limiting Current | 20 A |
| Charging Voltage | 8.4-9 V |
| Quiescent Current | Lower than 10 µA |
| Internal Resistance | <300 Ohm |
| Operating Temperature | -40°C to +50°C |
| Length (mm) | 44.77 |
| Width (mm) | 18.85 |
| Height (mm) | 3.5 |
| Weight (gm) | 4 |
| Shipment Weight | 0.005 kg |
| Shipment Dimensions | 4 × 4 × 1 cm |
1 x 2S 20A 18650 Lithium Battery Protection Board
The latest price of 2S 20A BMS Charger 18650 Lithium Li-ion Battery Balance Protection Board in Bangladesh is BDT 350 You can buy the 2S 20A BMS Charger 18650 Lithium Li-ion Battery Balance Protection Board at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
