Battery protection board, as the name suggests battery protection board is mainly rechargeable (Refers to the lithium battery) and protects the integrated circuit board. As the lithium battery, its material determines itself can not be overcharge, over-discharge, overcurrent, short circuit, and ultra-high temperature charge and discharge, so lithium battery lithium components will always follow A protective plate with sampling resistor, and a current fuse. RoboticsBD

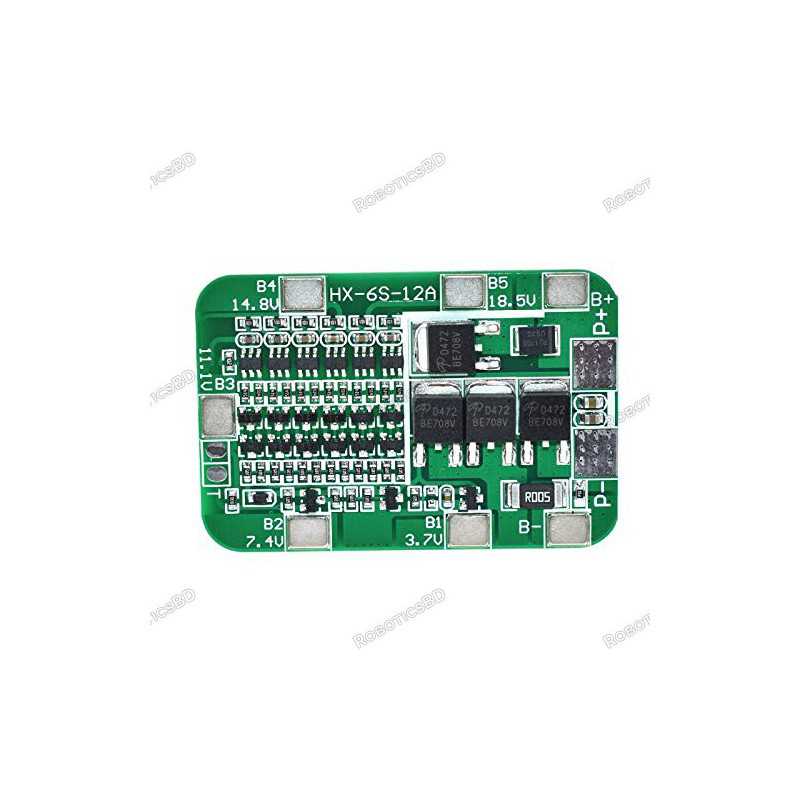

Providing all above features this 6S BMS board can combine 6 x 18650 battery to form a battery pack to provide up to 24VDC output at 15A current which can be used for heavy applications such as Drilling Machine, Car Washer etc. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Overcharging and Over Discharging Protection
Short circuit protection: Yes
Applicable assembly: Nominal 3.7V Batteries / 6 strings.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
General Specification | |
Maximum discharge current | 15A |
Instantaneous discharge current | 25A |
Charging voltage | 25.5V |
Charging current | 15A (MAX) |
Overcharge detection voltage | 4.28 ± 0.05V |
Overcharge protection delay | 0.1S |
Overcharge release voltage | 4.08 ± 0.05V |
Over discharge detection voltage | 2.55 ± 0.08V |
Over discharge detection delay | 0.1S |
Over discharge release voltage | 2.9 ± 0.1V |
Overcurrent detection voltage | 150mV |
Main circuit conduction resistance | ≤20mΩ |
Working current | ≤30uA |
Sleep current (battery over discharge) | ≤10uA |
Length (mm) | 49 |
Width (mm) | 32 |
Height (mm) | 2 |
Weight (gm) | 16 |
Shipment Weight | 0.01 kg |
Shipment Dimensions | 5 × 3 × 1 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x 6S 25A 18650 Lithium Battery Protection Board.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of 6S 15A 24V PCB BMS Protection Board for 6 Pack 18650 Li-ion Lithium Battery Cell Module DIY Kit in Bangladesh is BDT 450 You can buy the 6S 15A 24V PCB BMS Protection Board for 6 Pack 18650 Li-ion Lithium Battery Cell Module DIY Kit at best price from our RoboticsBD or visit RoboticsBD Office.
