A bracket is an architectural element. It is a structural or decorative member. This motor mounting bracket provides easy and secure mounting for motors. Motors are mounted within HVAC units and other systems by motor mounting brackets. These brackets attach to (or within) the unit and hold the motor.. Featured By RoboticsBD.

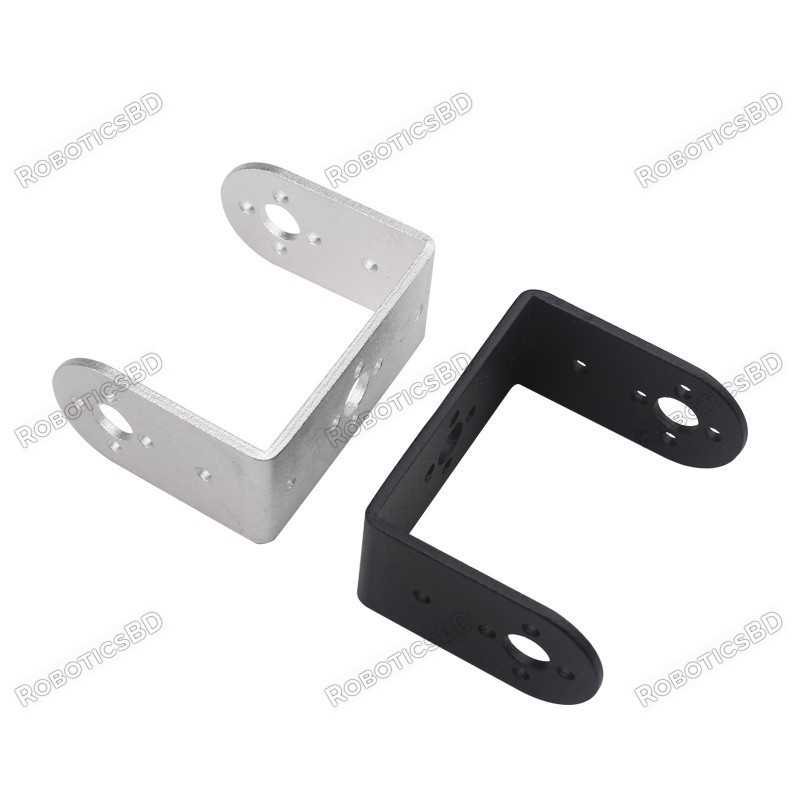

These ‘U’ shaped brackets are designed to fit most standard sized servos. The bracket is both lightweight and strong. The various holes on the bracket fit most servo horns.
Made from black anodized 6061 aluminum these brackets are light and strong and the numerous mounting holes enable you to easily make custom mechanisms using standard servo motors.
Product Images are shown for illustrative purposes only and may differ from the actual product.
Features:
- 2mm rigid aluminum plate
- Sandblasted and matte sprayed black
- Color black/silver
Applications
- FPV Camera systems
- Object tracking Systems
- Security Camera application
- Ultrasonic Distance measurement and Ultrasonic Radars
- Robotic Arm and Robotic Leg applications. RoboticsBD
| General Specification |
| Material |
2mm Aluminum Plate |
| Size |
56 x 44 x 25.5 mm |
| Weight |
16.5 gm |
| Supported Motor |
MG996R, MG995 |
| Shipment Weight |
0.020 kg |
| Shipment Dimensions |
6 × 4.5 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
Package Includes:
1 x Short U Servo Bracket
