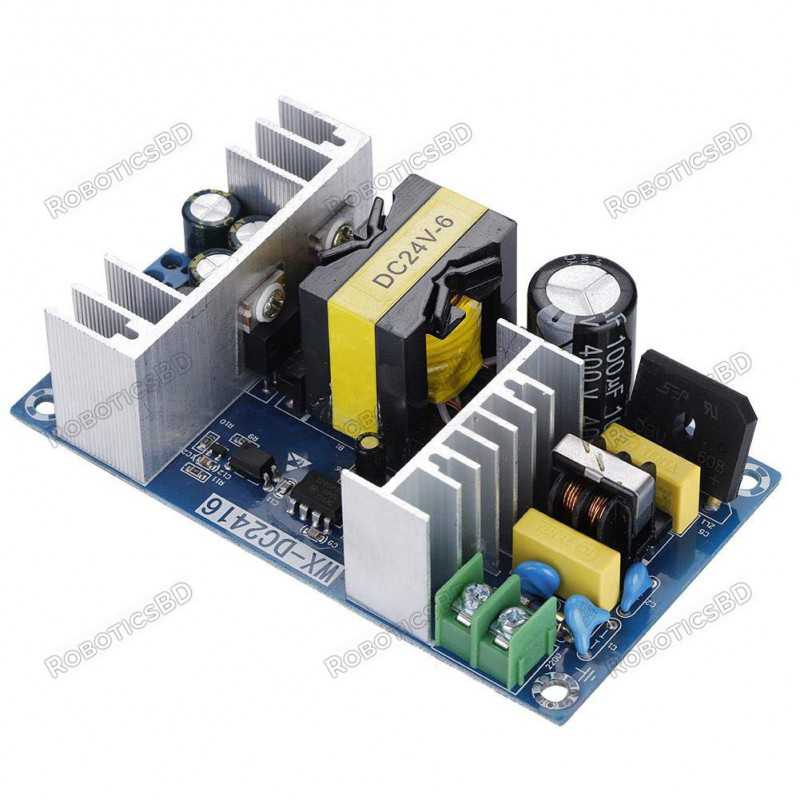

This 150W AC-DC Buck Converter 100V-240V to 24V 6A-9A Step Down Power Supply Module adopts double-sided PCB design which guarantees more stable and reliable performance and becomes more suitable for the power supply of industrial control system.
This is an electronic power supply module that incorporates a switching regulator to convert electrical power efficiently. Like many other power supplies, it transfers power from AC100V~240V(50HZ/60HZ) source to DC 24V.
Switching regulators are used as replacements for linear regulators when higher efficiency, smaller size or lighter weight are required. It supports over voltage protection, over current protection and short circuit protection. Designed with two heat sinks for better heat dissipation.. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Input AC Voltage(V) | 100 to 240 |
| Input Frequency(Hz) | 50 |
| Output Voltage(V) | 24 |
| Max. Output Current (A) | 6 to 9 |
| Overload Protection | Yes |
| Output Power(Watt) | 150 |
| Max. Output Power(Watt) | 220 |
| Over Current Protection | Yes |
| Short Circuit Protection | Yes |
| Mounting Hole Pitch | 10.5 cm and 5.5 cm |
| Length (mm) | 115 |
| Width (mm) | 65 |
| Height (mm) | 36 |
| Weight (gm) | 200 |
| Shipment Weight | 0.21 kg |
| Shipment Dimensions | 12 × 7 × 4 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x 150W AC-DC Buck Converter 100V-240V to 24V 6A-9A Step Down Power Supply Module
