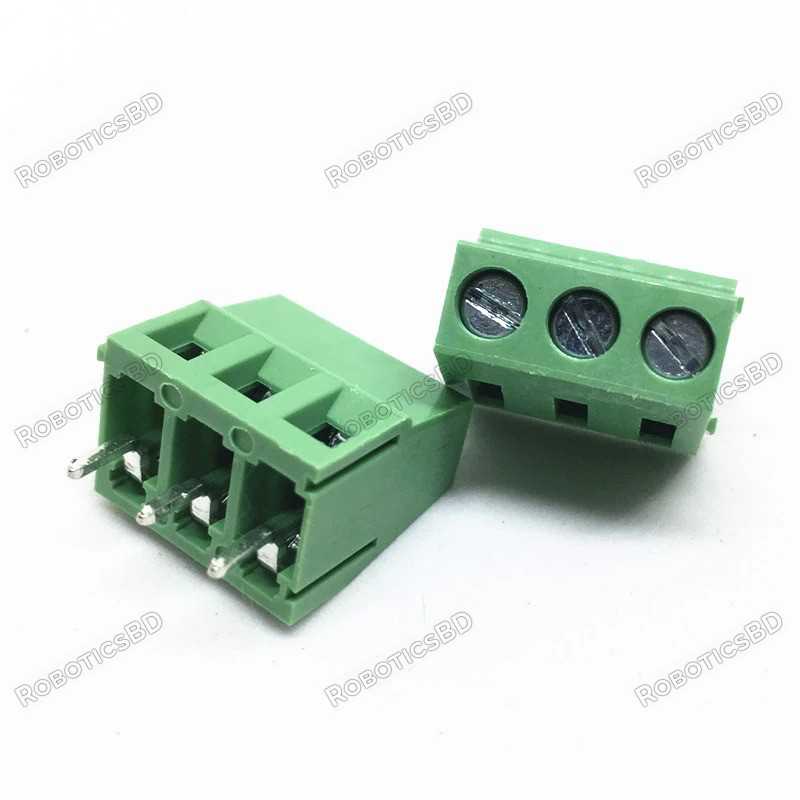

3 Pin 5.08mm Pitch Plug-in Screw Terminal Block Connector is a type of electrical connector, frequently used to connect wires to the PCB. The connector has a screw in each pin to fasten the wire securely. It has tin-plated brass for pin header and has nickel-plated brass contacts. RoboticsBD
The connector is made of PBT (Polybutylene terephthalate) which is mechanically strong, heat resistant(UL94-0) and has good insulation properties. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
General Specification | |
Connector | PCB Terminal Block |
Termination | Screw |
No. of Contacts | 3 |
Allowed Wire Size (AWG) | 24 ~ 16 |
Voltage(V) | 220V AC |
Operating Current (A) | 10 |
Mounting Type | Through Hole |
Pin Spacing (mm) | 5.08 |
Material | Metal and plastic |
Length (mm) | 15 |
Width (mm) | 10.3 |
Height (mm) | 14.12 |
Weight (gm) | 1 (approx.) (each) |
Shipment Weight | 0.005 kg |
Shipment Dimensions | 3 × 3 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x 3 Pin Pitch 5.0mm Straight Pin Screw PCB Terminal Block Connector.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of 3 Pin Pitch 5.0mm Straight Pin Screw PCB Terminal Block Connector in Bangladesh is BDT 12 You can buy the 3 Pin Pitch 5.0mm Straight Pin Screw PCB Terminal Block Connector at best price from our RoboticsBD or visit RoboticsBD Office.
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
Product Images are shown for illustrative purposes only and may differ from the actual product. |
