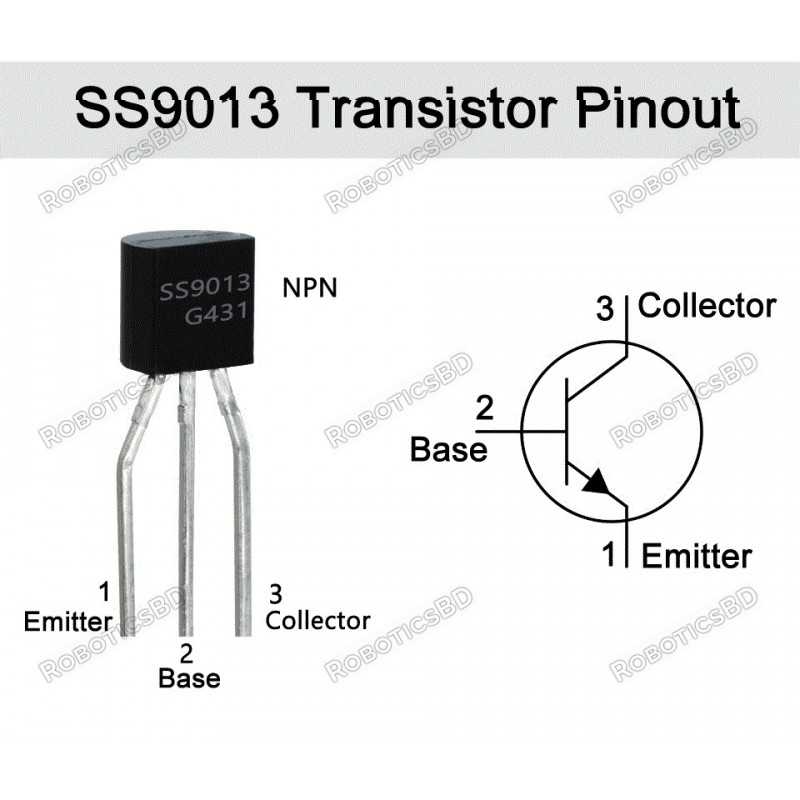

S9013 Transistor(pack of 3)
RBD-1471
- S9013 Transistor
- Transistor Type: NPN
-
Store Pickup Available!
-
Free Ship Over 5000 BDT
-
Quality Product
-
No Warranty
-
No Replacement
Applications:
- General purpose application.
- Switching application. RoboticsBD
Features:
- Transistor Type: NPN Max Collector Current(IC): 5A or 500mA
- Max Collector-Emitter Voltage (VCE): 20V
- Max Collector-Base Voltage (VCB): 40V
- Max Emitter-Base Voltage (VBE): 5V
- Max Collector Dissipation (Pc): 625 Milliwatt
- Max Transition Frequency (fT): 150 MHz
- Minimum & Maximum DC Current Gain (hFE): 64 To 202
- Max Storage & Operating temperature Should be: -55 to +150 Centigrade
- Excellent hFE linearity.
- Complementary pair with STS9012
| General Specification | |
| Collector-Emitter Voltage (VCE): | 20V |
| Collector-Base Voltage (VCB): | 40V |
| Emitter-Base Voltage (VBE): | 5V |
| Product Type | NPN Silicon Transistor |
| Operating Temperature Range (°C) | –55° C to +125° C |
| Mounting Type | Through Hole |
| Shipment Weight | 0.005 kg |
| Shipment Dimensions | 3 × 3 × 3 cm |
Documentation:
Package Includes:
3 x S9013 Transistor
What is the price of S9013 Transistor(pack of 3) in Bangladesh?
The latest price of S9013 Transistor(pack of 3) in Bangladesh is BDT 5 You can buy the S9013 Transistor(pack of 3) at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
