TIP132 NPN Transistor
RBD-1479
- TIP132 bipolar transistor
- Type - NPN
-
Store Pickup Available!
-
Free Ship Over 5000 BDT
-
Quality Product
-
No Warranty
-
No Replacement

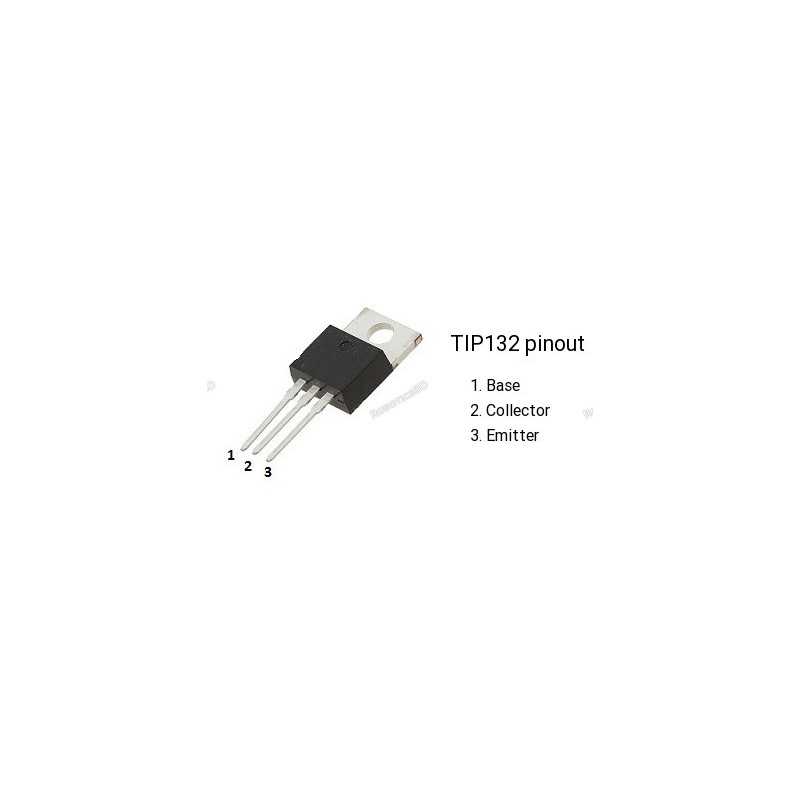

The TIP132 is a silicon Epitaxial-Base NPN power transistor in monolithic Darlington configuration, mounted in Jedec TO-220 plastic package. It is intented for use in power linear and switching applications.
The complementary PNP type is TIP137 . Also TIP135 is a PNP type. RoboticsBD
Applications:
- LINEAR EQUIPMENT
- SWITCHING INDUSTRIAL EQUIPMENT
Features:
- Type - NPN
- Collector-Emitter Voltage: 100 V
- Collector-Base Voltage: 100 V
- Emitter-Base Voltage: 5 V
- Collector Current: 8 A
- Collector Dissipation - 70 W
- DC Current Gain (hfe) - 1000 to 15000
- Operating and Storage Junction Temperature Range -65 to +150 °C
| General Specification | |
| Collector−Base Voltage VCBO | 100V |
| Collector−Emitter Voltage VCEO | 100V |
| Emitter-Base Voltage VEBO | 5V |
| Product Type | TIP132 TIP135 TIP137 COMPLEMENTARY SILICON POWER DARLINGTON TRANSISTORS |
| Operating Temperature Range (°C) | –55° C to +125° C |
| Mounting Type | Through Hole |
| Shipment Weight | 0.005 kg |
| Shipment Dimensions | 3 × 3 × 3 cm |
Documentation:
Package Includes:
1 x TIP132 NPN Transistor
What is the price of TIP132 NPN Transistor in Bangladesh?
The latest price of TIP132 NPN Transistor in Bangladesh is BDT 20 You can buy the TIP132 NPN Transistor at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
