| General Specification | |
| Specifications range: | -40°C to +85°C |
| Calibration temperature: | 20-28°C |
| Relative humidity: | < 95% RH (non-cond.) |
| Protection degree (encl./terminal): | IP68 / IP00 |
| Dimensions: | Ø 44 x 20.2 mm |
| Weight approx: | 50 g |
| Wire size: | 1 x 1.5 mm2stranded wire |
| Screw terminal torque: | 0.4 Nm |
| Vibration: | IEC 60068-2-6 |
| Vibration: 2-25 Hz: | ±1.6 mm |
| Vibration: 25-100 Hz: | ±4 g |
| Supply voltage: | 8.0-35 VDC |
| Response time (programmable): | 0.33-60 seconds |
| Internal consumption: | 25 mW-0.8 W |
| Voltage drop: | 8.0 VDC |
| Warm-up time: | 5 min |
| Programming: | Loop Link |
| Signal / noise ratio: | Min. 60 dB |
| Accuracy: | Better than 0.05% of selected range |
| Signal dynamics, input: | 19 bit |
| Signal dynamics, output: | 16 bit |
| Effect of supply voltage change: | less than 0.005% of span / VDC |
| EMC immunity influence: | less than ±0.5% of span |
| Max. offset: | 50% of selected max. value |
| Input | Resistance Thermometer |
| Cable resistance per wire (max.) | 10 Ω |
| Sensor current | > 0.2 mA, < 0.4 mA |
| Effect of sensor cable resistance (3-wire) | < 0.002 Ω / Ω |
| Sensor error detection | Yes |
| Linear resistance min....max. | 0 Ω...10000 Ω |
| Sensor error current: When detecting / else | Nom. 33 μA / 0 μA |
| Signal range | 4-20 mA |
| Min. signal range | 16 mA |
| Load (at current output) | ≤ (Vsupply – 8) / 0.023 [Ω] |
| Load stability | ≤0.01% of span / 100 Ω |
| Sensor error indication | Programmable 3.5-23 mA |
| NAMUR NE 43 Upscale/Downscale | 23 mA / 3.5 mA |
| *of span | = of the presently selected range |
| EMC | 2014/30/EU |
| EAC | TR-CU 020/2011 |
| ATEX 2014/34/EU | KEMA 10ATEX0003 X |
| IECEx | DEK 13.0036X |
| INMETRO | DEKRA 13.0002 X |
| CCOE | P337392/3 |
| DNV-GL Marine | Stand. f. Certific. No. 2.4 |
| Shipment Weight | 0.350 kg |
| Shipment Dimensions | 10 × 10 × 6 cm |

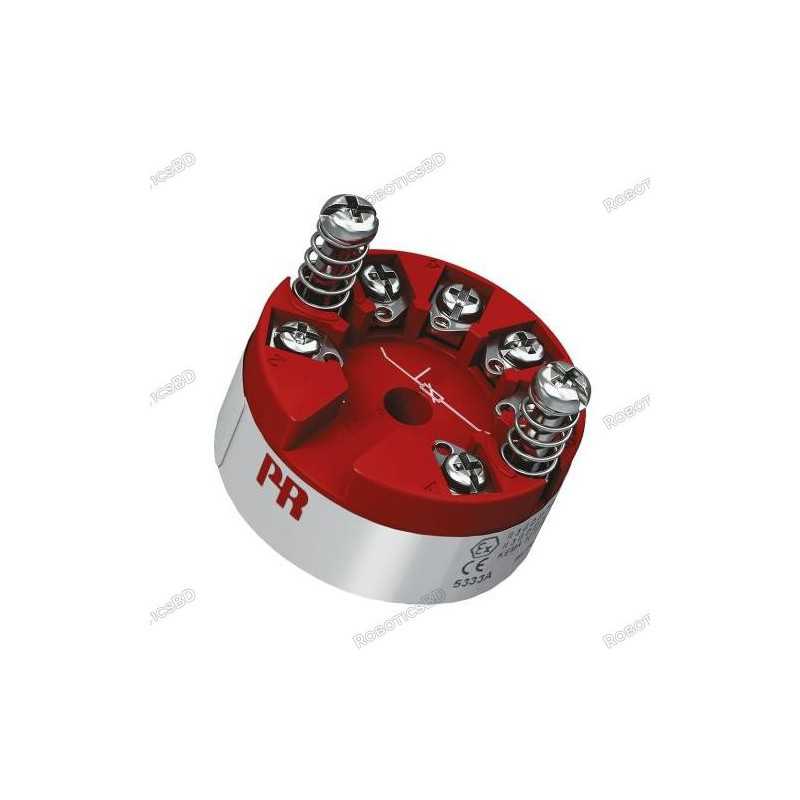

1 x PR electronics, 5333A Programmable Transmitter
The latest price of PR electronics, 5333A Programmable Transmitter in Bangladesh is BDT 8,000 You can buy the PR electronics, 5333A Programmable Transmitter at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
