XBee Pro S1 Robotics Bangladesh
  • XBee Pro S1 Robotics Bangladesh

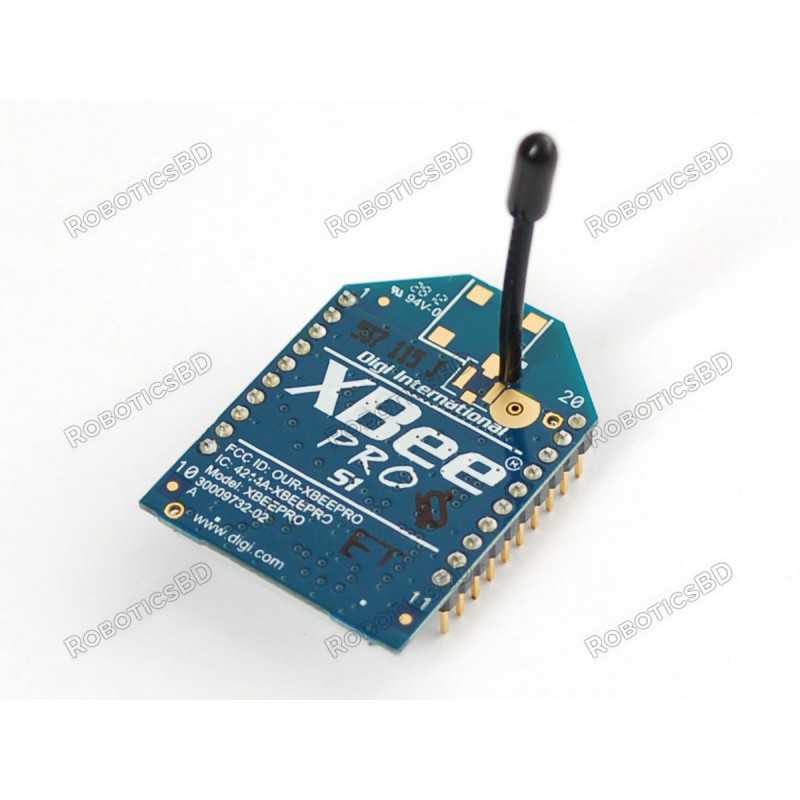

XBee Pro S1

RBD-1310
  • Supply voltage  2.8 - 3.4 V
  • Transmit current (typical) 340 mA (@3.3 V) (180 mA for international variant)
  • Idle/receive current (typical) 55 mA (@ 3.3 V)
  • Power-down current < 10 uA
BDT 2,200
Quantity
Out of Stock

7 people recently added this item to the cart
There are not enough products in stock
notifications Notify Me
  • Store Pickup Available! Store Pickup Available!
  • Free Ship Over 5000 BDT Free Ship Over 5000 BDT
  • Quality Product Quality Product
  • No Warranty No Warranty
  • No Replacement No Replacement

The series 1 802.15.4 protocol 1mW with wire antenna. Its good for point-to-point, multipoint and convertible to a mesh network point. We suggest this module for those starting out as it is the easiest to get going: if there are two XBees in the same area they will automatically 'sync' and pass serial data back and forth without any additional work or configuration

What we like about the Series 1 modules is that they are so easy to get set up. If you have two in range, they will automatically form a serial link with no configuration, so you can send TTL serial data back and forth. You can also configure the baudrate, as well as sleep modes, power modes and tons more stuff using the Digi XBee tool.

The pins on an XBee are 2mm spacing, not 0.1" so they will not fit into a breadboard. For that reason, they work best in our XBee adapter module kit (which has a 250mA 3.3V regulator) or with the USB XBee adapter.

This module comes with a wire antenna, its the same price as a chip antenna but 50% more range because of the improved antenna, awesome! Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. Indoor/urban range  Up to 300 ft. (90 m)
  2. Outdoor RF line-of-sight range Up to 2500 ft (750 m)international variant
  3. Transmit power output (software selectable) 10 mW (10 dBm) for international variant
  4. RF data rate 250,000 b/s
  5. Serial interface data rate (software selectable) 1200 bps - 250 kb/s (non-standard baud rates also supported)
  6. Receiver sensitivity (typical) 100 dBm (1% packet error rate)

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Operating frequency band ISM 2.4 GHz
Dimensions 2.438 cm x 3.294 cm
Operating temperature -40 to 85ºC (industrial)
Antenna options Integrated whip antenna, embedded PCB antenna, U.FL connector, RPSMA connector
Shipment Weight 0.005 kg
Shipment Dimensions 2.7 × 2.4 × 0.9 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. Datasheet

Package Includes:

1 x XBee Pro S1

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

What is the price of XBee Pro S1 in Bangladesh?

The latest price of XBee Pro S1 in Bangladesh is BDT 2,200 You can buy the XBee Pro S1 at best price from our RoboticsBD or visit RoboticsBD Office.

Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product.

Product Images are shown for illustrative purposes only and may differ from the actual product.
Product Details
RBD-1310
