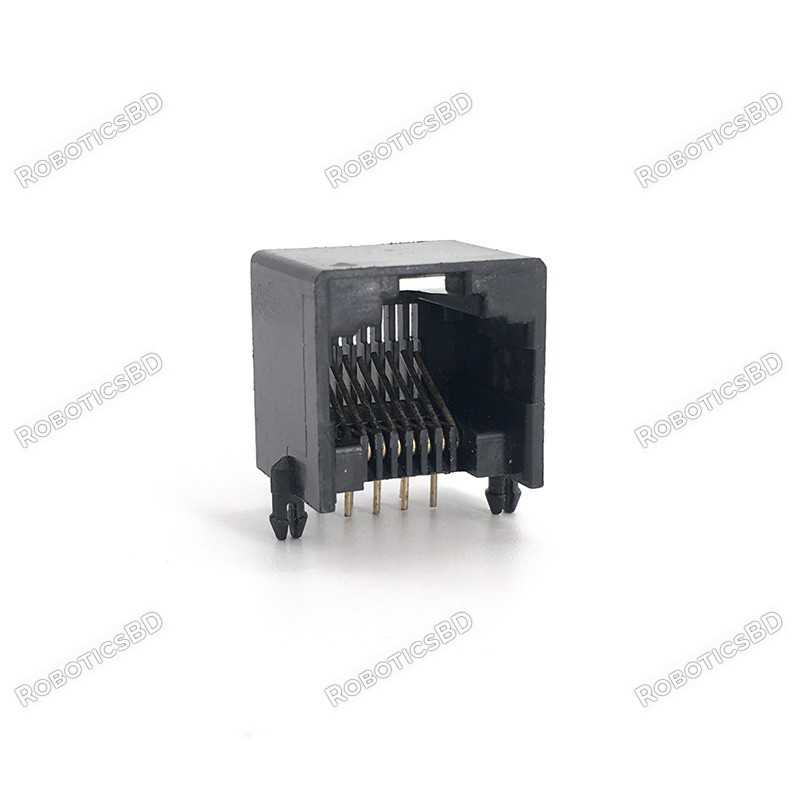

This is an RJ45 (8P-8C) Female Plug. It finds its use in telecom, communications, and networking. Data connectors accept stranded cables from 26 – 24 AWG. It has an 8P8C configuration i.e. it has 8 positions and 8 conductors. This plug has gold plated phosphor bronze contacts, which provide longevity. RoboticsBD
RJ45 is a type of communication protocol that is used for Ethernet and other long distance communications. In this type of communication, Data is transmitted between two electronics devices like Microcontrollers or Microprocessors over a very long distance without getting it lost. Normally communication protocols like SPI, USART, IIC will be used to transfer these data. These two devices are linked using a cable like CAT cables. The CAT cables are connected to the circuit through this RJ45 Connector. These connectors support any type of Ethernet cable like USP, CAT5e, CAT6 etc. RoboticsBD
There are also many types of RJ45 connectors, but they all serve the same function other than the appearance and built quality. So if you are looking for a connector to communicate through RJ45 Protocol then this connector might be the right choice for you. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Connector Type | RJ11/12 |
| Gender | Female |
| Voltage(V) | 30V AC / 42V DC |
| Operating Current (A) | 1.5 |
| Body Material | Polycarbonate UL94V-0 |
| Contact Material | Phosphor Bronze |
| Contact Resistance | 20mΩ |
| Contact Plating | Gold flash |
| Insulation Resistance (MΩ) | ≥1000 |
| Length (mm) | 18.3 |
| Width (mm) | 16 |
| Height (mm) | 13 |
| Weight (gm) | 5 (each) |
| Shipment Weight | 0.005 kg |
| Shipment Dimensions | 5 × 4 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
10 x RJ45 Connector Modular Jack for PCB and Faceplate.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of RJ45 Connector Modular Jack for PCB and Faceplate in Bangladesh is BDT 20 You can buy the RJ45 Connector Modular Jack for PCB and Faceplate at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
