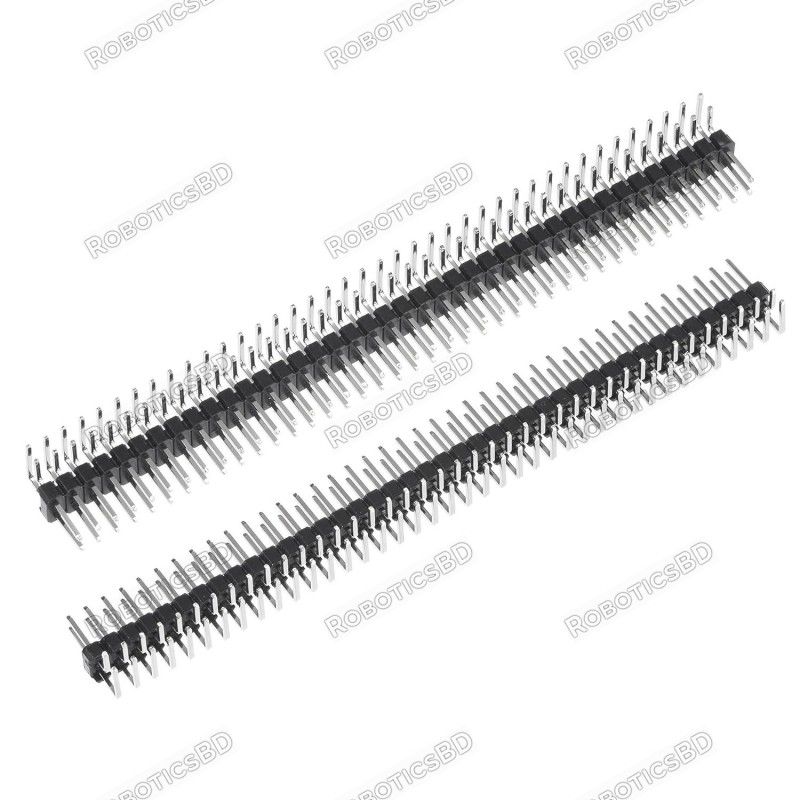

The 2.54mm 2x40 Pin Male Double Row Header Strip is a versatile and essential component for custom PCBs and prototyping projects. These right-angle male Berg strip connectors are designed for board-to-board or wire-to-board connections, making them suitable for a wide range of applications. With a 90° angle, they fit perfectly in spaces where standard straight connectors cannot. The connectors can be manually broken to the desired length, providing flexibility in design and application. The gold contact material ensures reliable and consistent connections, while the through-hole mounting makes them easy to solder. Whether you're building custom electronics or need reliable connectors for prototyping, these pin headers offer excellent performance and adaptability. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications | |
| Connector Type | Pin Header |
| Pitch | 2.54mm |
| Connector System | Board to Board, Wire to Board |
| Contact Material | Gold |
| Number of Pins | 2x40 |
| Mounting Angle | Right Angle (L Shaped) |
| Termination Method | Solder |
| Shrouded/Unshrouded | Unshrouded |
| Current Rating | 3A |
| Mounting Type | Through Hole |
| Number of Contacts | 2x40 |
| Contact Gender | Pin (Male) |
| Shipment Weight | 0.02 kg |
| Shipment Dimensions | 12 × 8 × 2.5 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x 2.54mm 2x40 Pin Male Double Row Header Strip - L-Shaped
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of 2.54mm 2x40 Pin Male Double Row Header Strip - L-Shaped in Bangladesh is BDT 25 You can buy the 2.54mm 2x40 Pin Male Double Row Header Strip - L-Shaped at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
