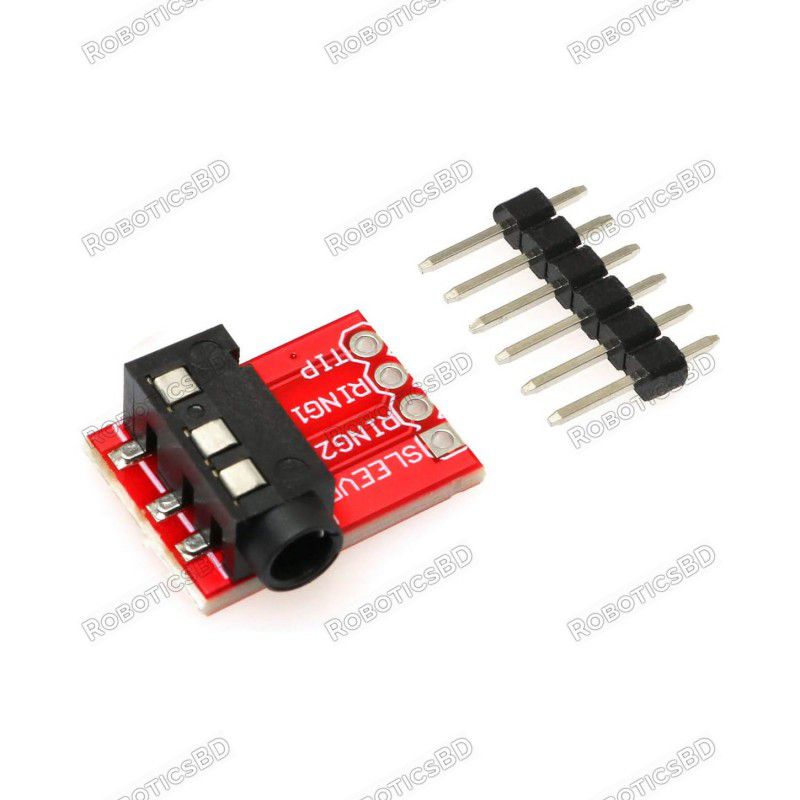

This simple breakout board allows 3.5mm TRRS audio jacks to be easily adapted to a solderless breadboard or prototype PCB.
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement
This simple breakout board allows 3.5mm TRRS audio jacks to be easily adapted to a solderless breadboard or prototype PCB.
TRRS stands for Tip / Ring1 / Ring2 / Sleeve and is designed for use with audio jacks that have 3 audio channels such as a Left / Right / Microphone or 2 audio channels and a video channel along with a ground sleeve.
The TRRS female socket can also be used with the traditional TRS style male plug that has 2 audio channels and a ground sleeve. In that case, both the Sleeve and Ring2 will be connected to ground and the Ring1 and Tip will carry the two audio channels.
Ring1 normally carries the RIGHT audio channel, while Tip normally carries the LEFT audio channel. If there is a 3rd channel, it usually carries a microphone or video channel.
The adapter brings out the four TRS / TRRS signals as listed below.
1 x 4 Header
Notes:
| Connector Type | 3.5mm TRRS Audio Socket | |
| Termination Style | 1 x 4 header | |
| Dimensions | L x W (PCB) | 18 x 14mm (0.7 x 0.55″) |
| Country of Origin | China |
The latest price of 3.5mm TRRS Audio Jack Breakout in Bangladesh is BDT 70 You can buy the 3.5mm TRRS Audio Jack Breakout at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
