The PIC Mini System Development Board featuring the Microchip PIC16F877A microcontroller is a versatile, beginner-friendly, and affordable development platform designed to accelerate embedded system learning and project development. Supporting both USB and 12V DC power inputs, this board offers exceptional flexibility and ease of use for engineers, students, and hobbyists alike.
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement
The PIC Mini System Development Board featuring the Microchip PIC16F877A microcontroller is a versatile, beginner-friendly, and affordable development platform designed to accelerate embedded system learning and project development. Supporting both USB and 12V DC power inputs, this board offers exceptional flexibility and ease of use for engineers, students, and hobbyists alike.
Equipped with a wide range of onboard features including RS232 serial communication via the MAX3232 chip, infrared remote control interface, LCD display support, and temperature sensor ports, the board makes experimenting with peripherals simple and effective. A built-in ICSP download/debugging interface ensures easy programming using tools like PICKit2, ICD2, K149, and K150.
This development board gives direct access to all CPU IO ports, VCC, 3.3V, and GND, making it perfect for prototyping, educational projects, and microcontroller experimentation.
Dual Power Supply Options: Supports USB and 12V external power input
Built-in MAX3232: Enables reliable RS232 serial communication
8-bit LED water lamp experiment module: Ideal for pattern generation and visualization
LCD Compatibility: Supports 12864 graphical and 1602 alphanumeric LCD modules
Two DS18B20 interfaces: For temperature sensing experiments
Integrated Infrared Receiver: Perfect for remote control applications
Dedicated ISP (In-System Programming) Port: For easy programming and debugging
Onboard 6 MHz Crystal Oscillator: Ensures stable and reliable clock operation
External Access to IO Ports: VCC, 3.3V, and GND available externally
Four Independent Buttons: Ideal for input and interrupt handling experiments
Manual Reset Button: For convenient system resets during development
| Feature | Specification |
|---|---|
| Microcontroller | Microchip PIC16F877A |
| Operating Voltage | 5V / 3.3V |
| Power Supply Options | USB or 12V DC external supply |
| Communication Interface | RS232 via MAX3232 chip |
| Clock Frequency | 6 MHz Crystal Oscillator |
| Infrared Receiver | Integrated IR Module |
| Temperature Sensor Ports | 2 x DS18B20 interfaces |
| LCD Support | 12864 graphical LCD, 1602 LCD module |
| Dimensions | Compact and easy to integrate |
Choose your power source: connect via USB or provide a 12V DC external supply.
Connect programming tools like PICKit2 or ICD2 via the dedicated ICSP port.
Load and debug your firmware easily through the serial port.
Utilize onboard components (LEDs, IR receiver, LCD ports, DS18B20 interfaces) for practical experiments and demonstrations.
Access all IO pins and peripherals for expanded external circuit integration.
Embedded systems prototyping and testing
Microcontroller programming practice
Sensor-based experiments (temperature, IR remote control)
LCD display interfacing (text and graphical)
Serial communication experiments
Interrupt and button-handling demonstrations
Educational projects and learning platforms

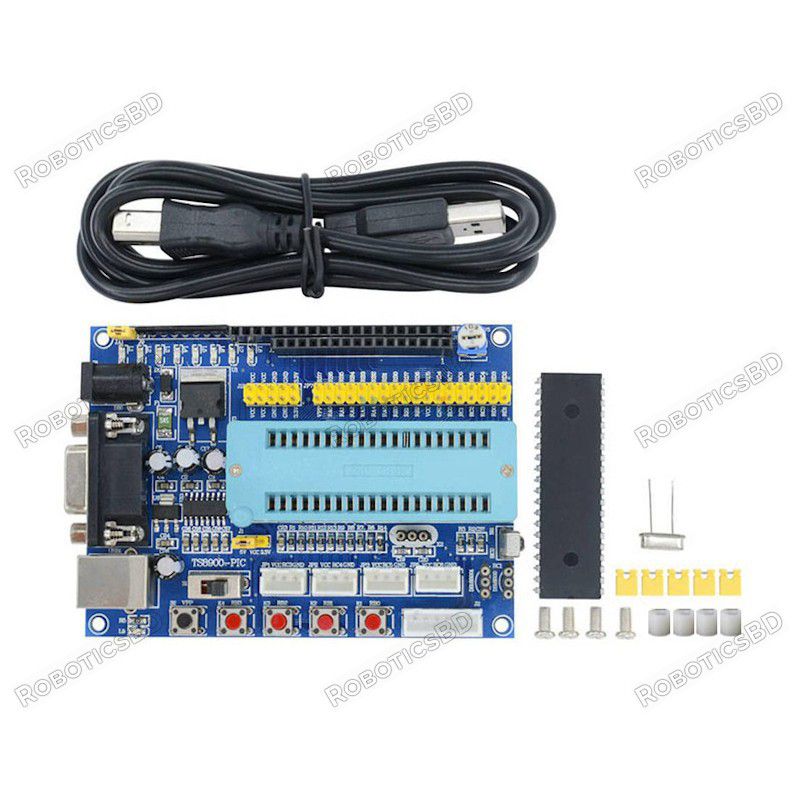

1 x PIC Mini System Development Board - Microchip PIC16F877A
1 x USB A to USB B Cable (39 Inch, Black)
4 x Screws
4 x Plastic Hex Spacers
4 x Computer Short Jumpers (Yellow)
1 x 6 MHz Crystal Oscillator
Flexible power input options for maximum convenience
Built-in communication and testing interfaces for rapid prototyping
All IO ports accessible for easier circuit expansion
Perfect learning platform for students and beginners
Supports a wide range of applications, from basic experiments to complex projects
Empower your embedded development journey with the PIC Mini System Development Board featuring the PIC16F877A microcontroller.
Order now and unlock a new level of learning, prototyping, and innovation!
The latest price of PIC Mini System Development Board - Microchip PIC16F877A in Bangladesh is BDT 2,500 You can buy the PIC Mini System Development Board - Microchip PIC16F877A at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
