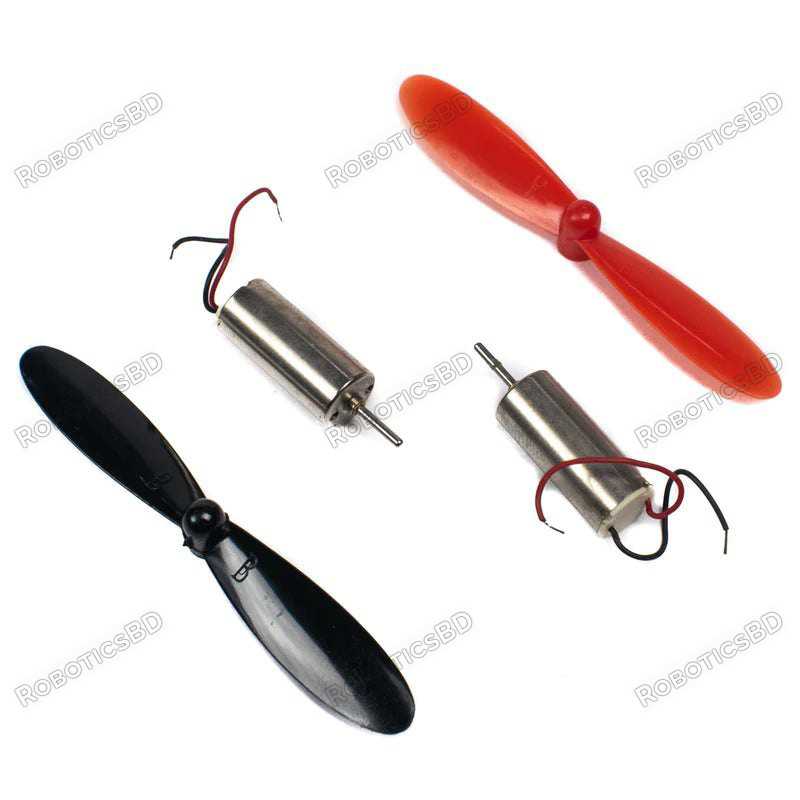

The 8x20mm Coreless Motor with 75mm Propeller Pair is a high-performance and affordable option for small drones. These lightweight brushed DC coreless motors offer excellent performance at a fraction of the cost of BLDC motors. They are compact and lightweight, making them ideal for use in small multirotor frames. With a rating of 39000 RPM, they provide more than enough power to lift and push your drone to your desired target. They are also low noise and low resistance, making them a great choice for quiet flight. While they are high-speed and low-torque motors, they are still a great option for small drones that do not require a lot of torque. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Model | 8020 |
| Rated Speed (RPM) | 39000 |
| Rated Voltage(V) | 3.7 |
| Rated Current(A) | 0.15 |
| Operating Temperature (°C) | -10 to 50 |
| Rated RPM | 30500 |
| Rated Load Current (mA) | 1620 |
| Motor Color | Silver |
| Motor Material | Metal |
| Motor Diameter(mm) | 8.0 |
| Motor Length (mm) | 20 |
| Shaft Diameter (mm) | 1 |
| Cable Length (cm) | 6 |
| Shipment Weight | 0.015 kg |
| Shipment Dimensions | 12 × 8 × 2.5 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x 8x20mm DC Motor with 75mm Propeller Pair
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of 8x20mm Coreless Motor with 75mm Propeller Pair in Bangladesh is BDT 290 You can buy the 8x20mm Coreless Motor with 75mm Propeller Pair at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
