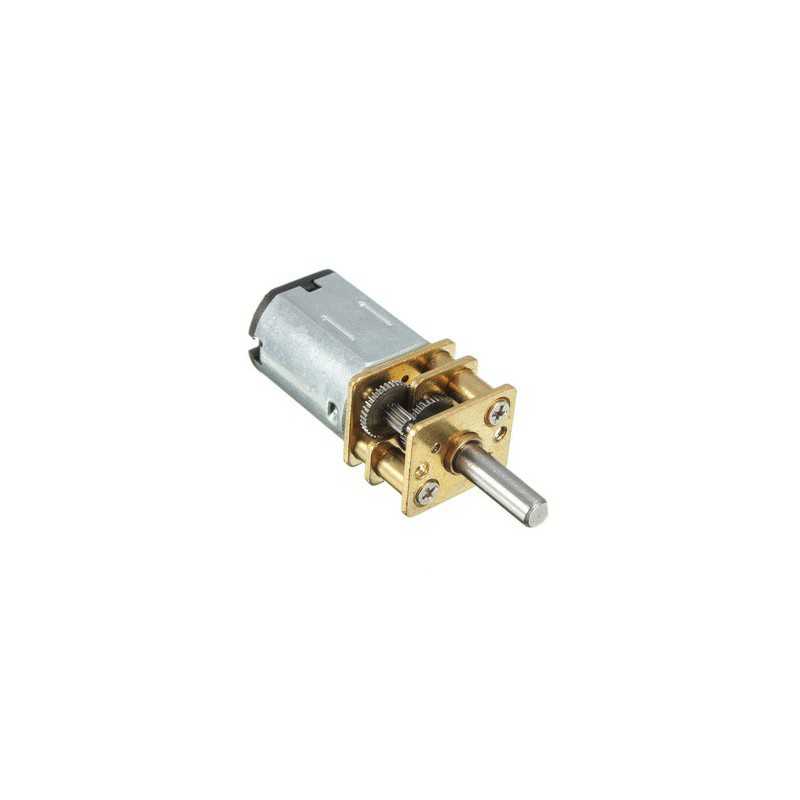

This N20-12V-300 Rpm Micro Metal Gear Motor has small volume, torsion big, all metal gear, durable, not easy to wear. Great replacement for the rusty or damaged DC geared speed reduce motor on the machine. Widely used on Boat, Car, Electric Bicycle, Fan, Home Appliance. RoboticsBD
The N20 Micro Gear 12V 300 RPM DC Motor (High Torque) is lightweight, high torque, and low RPM motor. It is equipped with gearbox assembly so as to increase the torque of the motor. It has a cross-section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. It has a very small size so as fit in complex spaces of small-scale application. One can connect this Micro Gear Motor to wheels to drive them from one place to other while carrying high loads.
This N20 Micro Gear 300RPM 12 V DC Motor (High Torque) has small volume, torsion big, all metal gear, durable, not easy to wear. Great replacement for the rusty or damaged DC geared speed reduce motor on the machine. Widely used on Boat, Car, Electric Bicycle, Fan, Home Appliance. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Model No. | N20-12V-300 |
| No Load Current (mA) | 0.06 A |
| Stall Current (A) | 0.75 |
| Rated Torque(kg-cm) | 0.4 |
| Stall Torque(Kg-Cm) | 1.2 |
| Motor Body Size (Diameter) (mm) | 12 |
| Operating Voltage (VDC) | 6 ~ 12 |
| Rated Operating Voltage (VDC) | 12 |
| Rated Speed (RPM) | 300 |
| No load Speed (RPM) | 300 |
| Shaft Type | D-type Single Side |
| Shaft Diameter (mm) | 3 |
| Weight (gm) | 12 |
| Output Axial Length (mm) | 10 |
| Fuselage w/o Shaft Length | 26 |
| Screw Size | M3 |
| Motor Type | Single Shaft |
| Shipment Weight | 0.016 kg |
| Shipment Dimensions | 6 × 6 × 2 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x N20 12V 300 RPM Micro Metal DC Gear Motor.
