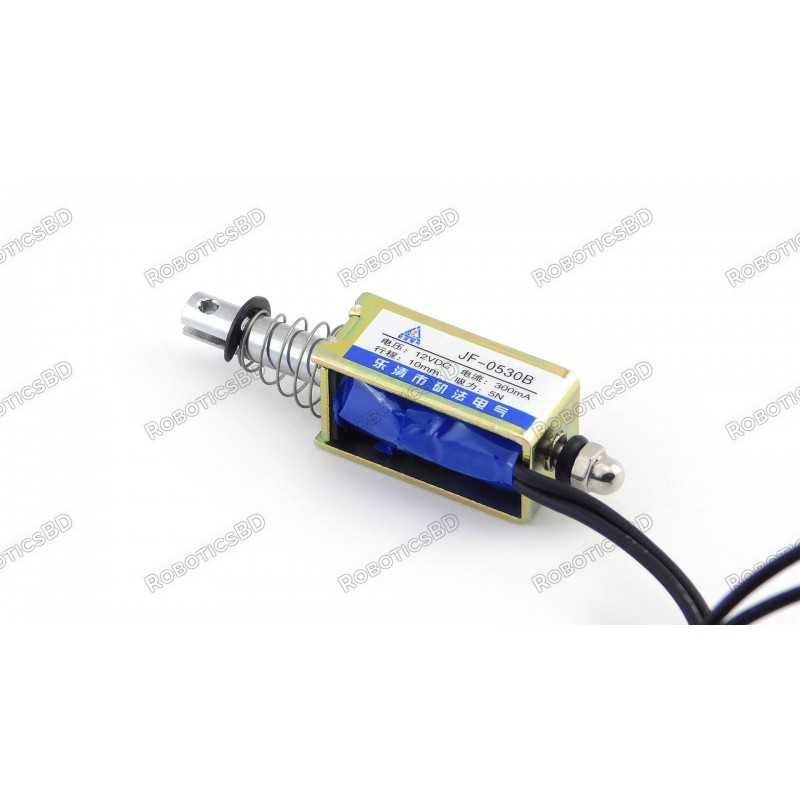

DC 12 V 300mA Push Pull Solenoid electromagnet, 10mm 6N Push Pull Type, open frame type, linear motion, plunger spring return, open coil form, DC electron magnet. Used widely in home appliances, vending machines, a game machine, auto door lock. RoboticsBD
This DC 12 V 300mA 10mm 5N Push Pull Solenoid Electromagnet can be used for locking sell-machine, storage shelf, file cabinet and etc. The hidden way of unlocking can be used for an emergency. The lock works as the circuits disconnects, and it will unlock as the instant power-on.
It is steady, durable and energy-saving and had a long lifespan. In the anti-theft and shockproof design, the lock is better than other kinds of locks. After connecting the wires and when the current is available, the electric lock can control the door’s opening and closing.Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Note: Take care of polarity while making the connection without connector (i.e. Red wire should be connected to the positive and Black wire to negative.)
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Model | JF-0630B DC 12 V 5N Push Pull Solenoid Electromagnet |
| Rated Operating Voltage (VDC) | 12 |
| Operation Mode | Push-Pull (Normally Closed) |
| Rated Current (mA) | 300 |
| Holding Force (N) | 6 |
| Energized forms | Intermittent |
| Cable Length (cm) | 15 |
| Mounting Hole(mm) | M2 |
| Shaft Hole Diameter | 3 |
| Dimensions (mm) LxWxH | 30 x 14 x 19 |
| Weight(gm) | 46 |
| Shipment Weight | 0.07 kg |
| Shipment Dimensions | 10 × 5 × 5 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x JF-0530B Pull Push Type Electric Solenoid Electromagnet 10mm 5N DC12V
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of JF-0530B Pull Push Type Electric Solenoid Electromagnet 10mm 5N DC12V in Bangladesh is BDT 489 You can buy the JF-0530B Pull Push Type Electric Solenoid Electromagnet 10mm 5N DC12V at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
