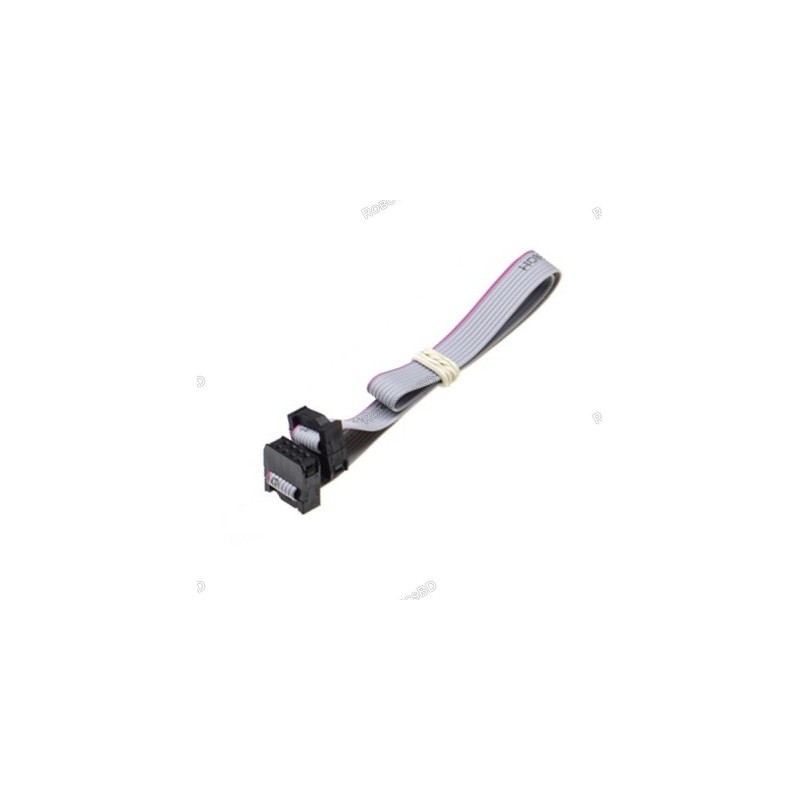

It is a 2.54mm Pitch 6 Pin JTAG ISP AVR Cable. It is used in verifying designs and testing PCBs after they are manufactured.
Essentially all embedded systems platforms are JTAG compatible. They include a JTAG port to support plug-in debugging and firmware programming as well as for boundary-scan testing. Featured By RoboticsBD.
The cable has two rows of 6 pins each and has a length of 200mm.
Product Images are shown for illustrative purposes only and may differ from the actual product.
Features:
- 2.54MM Pitch JTAG ISP AVR Download Cable Wire
- FC-10 Connector 20cm 6 pin
- Flat Ribbon Cable
- FC connector spacing: 2.54mm
- Connector Type: Female IDC Connectors
- Compatible with all embedded systems platforms.
- Supports field updates and troubleshooting.
General Specification |
Connector Type |
JTAG |
No. of Pins |
6 |
Pin Spacing (mm) |
2.54 |
Length (mm) |
200 |
Width (mm) |
17 |
Height (mm) |
15 |
Weight (gm) |
8 (each) |
Cable Length (cm) |
20 |
Cable Size (AWG) |
28 |
Shipment Weight |
0.01 kg |
Shipment Dimensions |
6 × 6 × 1 cm |
Please allow 5% measuring deviation due to manual measurement.
Package Includes:
1 x Flat Ribbon 2.54MM Pitch FC-6 JTAG ISP AVR Data Cable 20cm 6 Pin
