APM 2.6 Pixhawk Power Module V1.
  • APM 2.6 Pixhawk Power Module V1.
  • APM 2.6 Pixhawk Power Module V1.

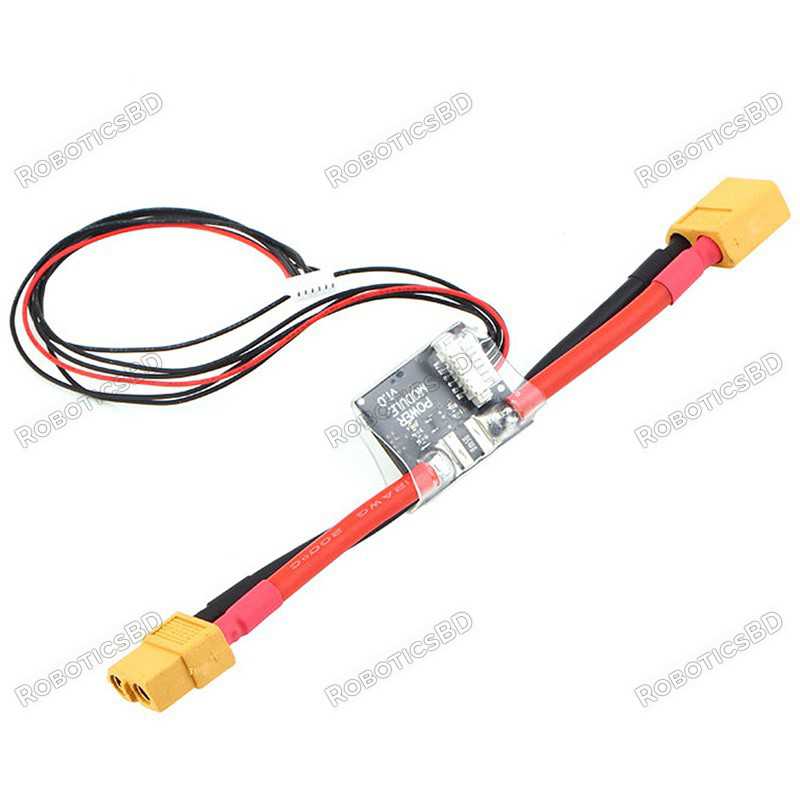

APM 2.6 Pixhawk Power Module V1.0

RBD-0381
  • Operating Voltage:6~28 VDC
  • Max Input Voltage:28 V DC
  • Max Current Sensing: 90 A
  • Connecting Type:XT-60 RoboticsBD
BDT 999
rating Read the 5 reviews
Average rating: 5/5 - Number of reviews: 5
Quantity
Out of Stock

1 person has purchased this item
94 people recently added this item to the cart
There are not enough products in stock
notifications Notify Me
  • Store Pickup Available! Store Pickup Available!
  • Free Ship Over 5000 BDT Free Ship Over 5000 BDT
  • Quality Product Quality Product
  • No Warranty No Warranty
  • No Replacement No Replacement

A battery Eliminator circuit is a type of voltage regulator.it is used to prevent high voltage towards the Esc’s and pass the required voltage which is essential. As modern RC airplanes use high voltage batteries, it allows you to run your receiver, servos, and other accessories from your main battery without using a separate lower voltage one. RoboticsBD

The APM 2.5.2/2.6/2.8 Pixhawk Power Module is a simple way of providing your APM 2.5 with clean power from a LiPo battery as well as current consumption and battery voltage measurements, all through a 6-pos cable. The on-board switching regulator outputs 5.3V and a maximum of 2.25A from a 2S-6S LiPo battery. The Power Module comes completely assembled with “Deans” or “T” connectors, and wrapped in shrink tubing for protection. Also, the circuit detects a sensing current around 90 AFeatured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Note:

The Power Module is only designed to power APM, an RC receiver, and APM accessories (GPS, 3DR radio). It is not designed to power the servos. Use your aircraft’s own ESC/BEC for that. RoboticsBD



Features:

  1. Voltage and current measurement configured for 5V ADC.
  2. Switching regulator outputs 5.3V and 3A max.
  3. 6-pos DF13 cable plugs directly to APM 2.5’s ‘PM’ connector.
  4. Supports from 2 cell to 6 cell battery. RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Operating Voltage (VDC) 6 to 28
Max input voltage(VDC) 28
Max current sensing(A) 90
Connector Type XT60
Total Length(cm) 160
Weight (gm) 24
Shipment Weight 0.027 kg
Shipment Dimensions 15 × 5 × 2 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes :

1 x APM 2.6 Pixhawk Power Module V1.0

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

What is the price of APM 2.6 Pixhawk Power Module V1.0 in Bangladesh?

The latest price of APM 2.6 Pixhawk Power Module V1.0 in Bangladesh is BDT 999 You can buy the APM 2.6 Pixhawk Power Module V1.0 at best price from our RoboticsBD or visit RoboticsBD Office.

Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product.

Product Images are shown for illustrative purposes only and may differ from the actual product.

Product Details
RBD-0381
.
rating
22/06/2023
Miju
good
good
rating
25/02/2023
Sabbir Ahmed
working
MUST HAVE FOR APM Flight Controllers
rating
08/11/2022
Saravanan Veerayah Jayaraman
This is a must have for APM flight controllers as it splits the power parallelly for power distribution board.
Power Module
rating
29/12/2021
Jahir\r\n
It\'s good. I am using it for 2 months and crashed the drone, also drowned it into the water. But surprisingly it\'s still functioning.
Good
rating
15/07/2019
Zihad\r\n
Good
