If you want to build a drone, an FPV camera is one of the most important components to include. The receiver receives video or photos from the FPV camera. As a result, a camera is necessary for the drone’s construction. This FPV camera support both PAL and NTSC where PAL is slightly sharper and clearer text display on the screen and NTSC is used for slightly higher frame rate, and it helps with smoother FPV video playback and the Lens can be tilted up to 170 degrees. This Type of FPV camera is used for many of the same applications like Aerial photography and cinematography, remote inspections, security, Military, and Other entertainment purposes. RoboticsBD

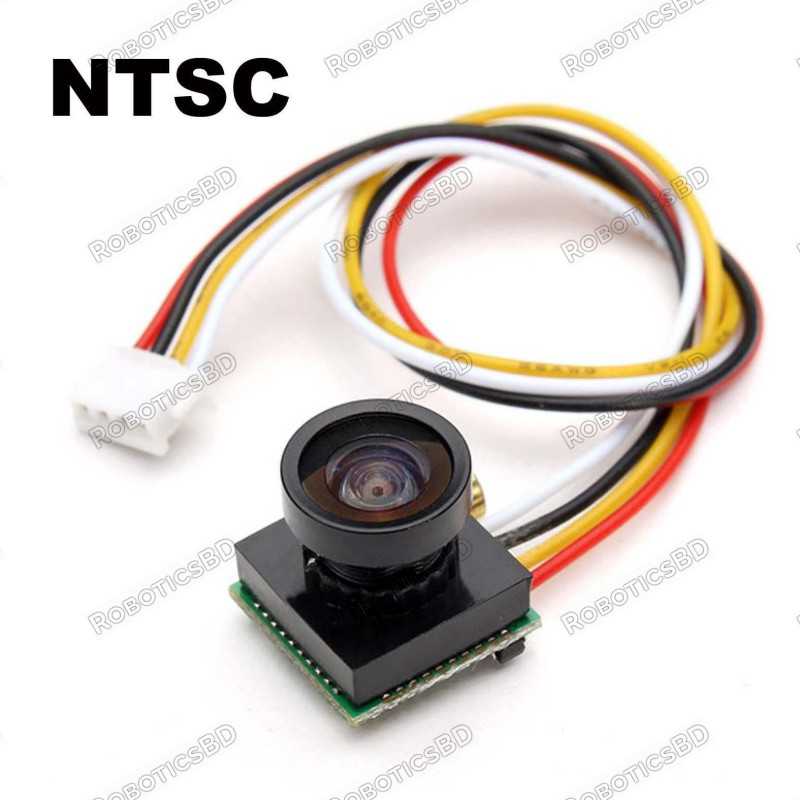

This 600TVL 170 degree super small color video mini FPV camera with audio can be used for Mini 200/ 250/ 300 Quadcopter and The frame Speed of the camera is about 50f/s which is the ideal frame rate for shooting slow-motion footage. Its tiny and lightweight size with the best features in the class like 3.7-5V 100mA operating power requirement, 1280 x 960 recording resolution, great capturing capability even in low light conditions makes it suitable for your quadcopter Application. RoboticsBD
Features:
- Illumination: 0.5LUX
- Format: PAL / NTSC
- Audio Lens: Wide-angle 1.8mm (170 degrees)
- Sensitive area: 3.5964mm x 2.7084mm
- 648 pixels (horizontal) × 488 (vertical)
- Scanning Frequency Horizontal: 15.625KHz
- Vertical: 50Hz
- level: 15.7343KHz
- Vertical: 60Hz
- Electronic Shutter 1 / 50-1 / 80000 (sec) 1 / 60-1 / 80000 (sec)
- Standard Lens : 1.8 mm
- Size of the lens : M10
- Power: DC5V ± 10% 70mA ± 10%
- Operating temperature Range: -10 °C ~ 60 °CRH95% Max
| General Specification |
| Operating Voltage (VDC) |
3.7 ~ 5 |
| Working Current |
100 mA |
| Horizontal Resolution (TVL) |
600 |
| Lense Viewing Angle (FOV) |
170º |
| Gamma Correction |
0.45. |
| Image Sensor |
1/4 CMOS image sensor |
| Minimum Illumination |
0.1 Lux / F1.2 |
| Pixel Resolution |
1280 x 960 |
| Video Output |
1.0Vp – P75Ω. |
| S/N Ratio (dB) |
48 |
| Operating Temperature Range (°C) |
-10 to 50 |
| Dimensions in mm (LxWxH) |
12.5 x 12.5 x 17 |
| Weight (gm) |
4 |
| Shipment Weight |
0.005 kg |
| Shipment Dimensions |
3 × 3 × 1 cm |
Package Includes :
1 x 600TVL Wide Angle Lens Camera with a Mic.
What is the price of 600TVL 1/4 1.8mm Lens CMOS 170 Degree Wide Angle CCD Mini FPV Camera NTSC in Bangladesh?
The latest price of 600TVL 1/4 1.8mm Lens CMOS 170 Degree Wide Angle CCD Mini FPV Camera NTSC in Bangladesh is BDT 1,150 You can buy the 600TVL 1/4 1.8mm Lens CMOS 170 Degree Wide Angle CCD Mini FPV Camera NTSC at best price from our RoboticsBD or visit RoboticsBD Office.
|
