When using a drone, a transmitter is one of the most important components. You can’t fly a multirotor without it because it uses radio signals to send commands wirelessly to a Radio Receiver, which is connected to an aircraft or multirotor that is being remotely controlled. RoboticsBD

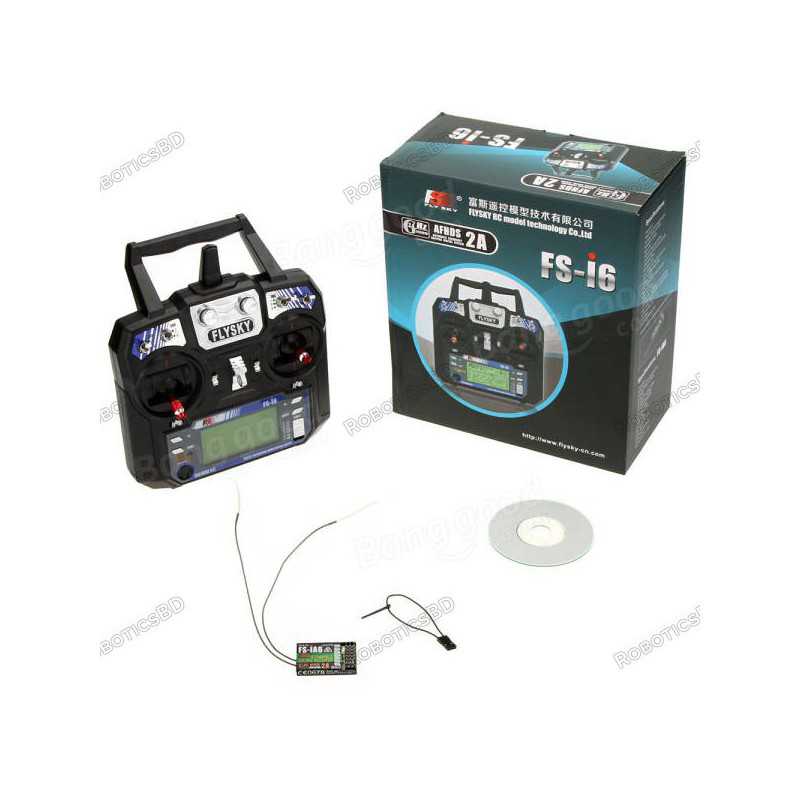

This is the FlySky FS-i6 2.4G 6CH PPM RC Transmitter With FS-iA6B Receiver. It is a great entry-level radio for those just starting in the field of drones flying.
Above all, you get a slim, modern radio transmitter that fits nicely in your hands and weighs just under 400 gm. It won’t test your arm stamina on those long flights. This radio is also really practical with a 3-position switch. It has two adjustable knobs for flight modes/ multiple flap positions.
You will get the new FS-iA6B receiver with this kit. This is a compact 6-channel receiver with a range exceeding 500m in addition. it comes with a dual antenna for excellent reception and interference rejection capabilities. RoboticsBD
Each transmitter has a unique ID and so when binding; the receiver remembers this ID and accepts data from that transmitter only. This avoids picking up other transmitter signals and dramatically decreases inference and increases safety. RoboticsBD
| General Specification | |
| No. of Channels | 6 |
| RF Range (GHz) | 2.40 ~ 2.48 |
| Bandwidth (KHz) | 500 |
| RF Power (dBm) | ≤20 |
| Sensitivity | 1024 |
| Low Voltage Warning (V) | ≤ 4.2 |
| Power | 6V (4 x 1.5AA Not Included) |
| Display mode | Transflective STN positive type, 128*64 dot-matrix VA73*39mm, white backlight |
| Length (mm) | 174 |
| Width (mm) | 190 |
| Height (mm) | 40 |
| Weight (gm) | 400 |
| Color | Black |
| UPC | 190268390989 |
| Shipment Weight | 0.48 kg |
| Shipment Dimensions | 22 × 17 × 9 cm |
| Certificate | CE0678, FCC |
| Shipment Weight | 0.95 kg |
| Shipment Dimensions | 24 × 22 × 9 cm |
1 x FlySky FS-i6 2.4G 6CH PPM RC Transmitter.
1 x FS-iA6B receiver.
1x User Manual BookLet.
The latest price of FlySky FS-i6 2.4G 6CH AFHDS RC Transmitter With FS-iA6 Receiver in Bangladesh is BDT 7,100 You can buy the FlySky FS-i6 2.4G 6CH AFHDS RC Transmitter With FS-iA6 Receiver at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
