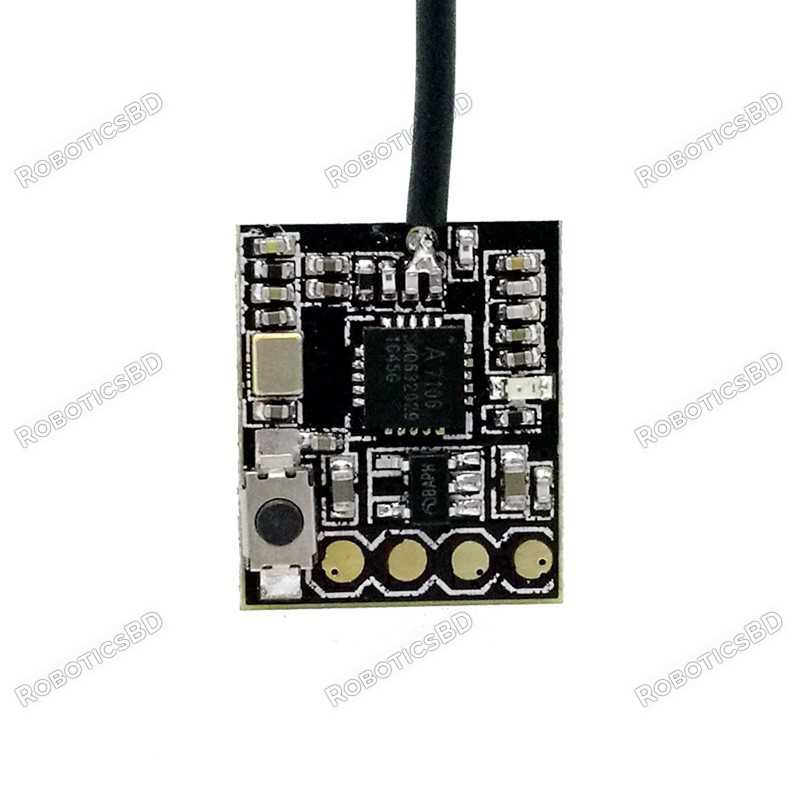

The FS-RX2A Pro Radio Receiver Mini Receiver is built for use in multi-rotor drones and is a 1-way receiver (no telemetry).
It uses the extremely stable AFHDS 2A (Automatic Frequency Hopping Digital System) protocol, supports standard PPM output and has i-BUS support for up to 10 channels. RoboticsBD
In the world of racing drones, the requirements are for small and lightweight components. The FS-A8S receiver fits these requirements superbly, being only 12 x 15 mm and 1.0g. RoboticsBD
Compatible Transmitter: All AFHDS 2A Transmitter, for example, FS-I6, FS-I6X, FS-I6S, FS-TM8, FS-TM10, FS-I10 etc.
Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1. Press and hold the Binding button, and supply power to the receiver, the green LED blinks fast means entering the binding mode.
2. Make the transmitter enter BIND mode. RoboticsBD
3. The LED indicator become slowly blink means the binding succeeds.
4. Make the transmitter quit the BIND mode, the receiver LED indicator to stay on means receiving signal
Note: Failsafe only works on IBUS, not in PPM.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
General Specification | |
Model | FS-RX2A Pro |
No. of Channels | 10 |
No. of Band | 135 |
RF Range | 2.408-2.475GHZ |
Rx Sensitivity (dBm) | -92 |
Signal Output | IBUS, PPM |
Operating Voltage (VDC) | 3.3 ~ 5V |
Current Consumption (mA) | 30 |
Control Distance | 400m+ |
i-Bus Interface | Yes |
Antenna Length (mm) | 33 |
Color | Black |
Net weight (gm) | 1 |
Dimensions (mm) LxWxH | 12 x 15 |
Shipment Weight | 0.01 kg |
Shipment Dimensions | 4 × 3 × 1 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x FlySky FS-RX2A Pro 2.4Ghz Receiver.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of FlySky FS-RX2A Pro 2.4Ghz Receiver in Bangladesh is BDT 1,200 You can buy the FlySky FS-RX2A Pro 2.4Ghz Receiver at best price from our RoboticsBD or visit RoboticsBD Office.
