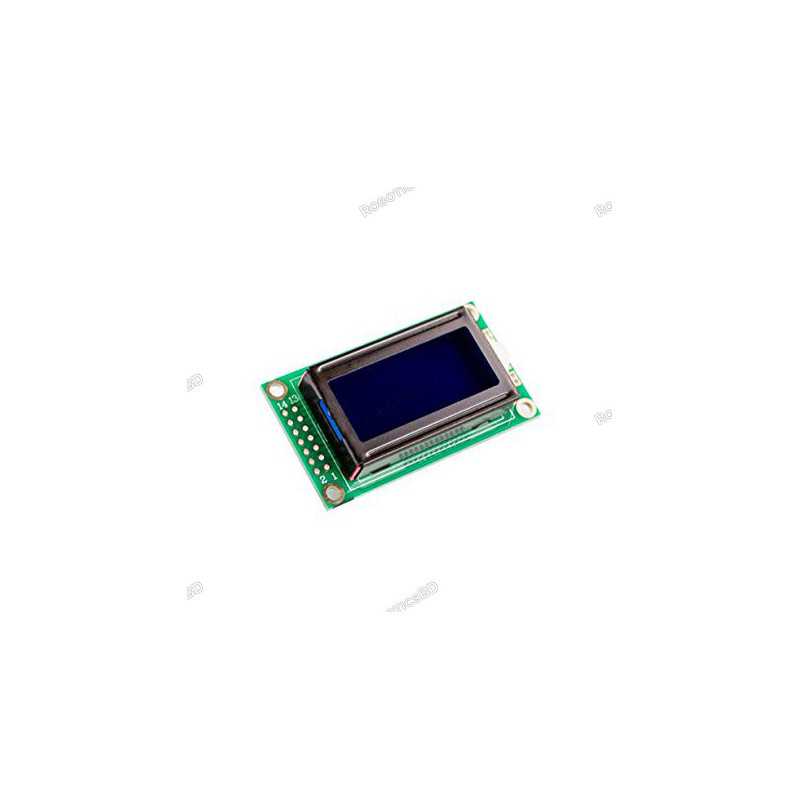

This little 8-character, 2-line parallel liquid crystal display is a generic equivalent of the Optrex DMC-50448N-AAE-AD LCD. It is incorporated into our Orangutan SV-328 robot controllers, some versions of our A-Star 32U4 Prime microcontroller boards, and our Zumo 32U4 and 3pi robots. It uses the common HD44780 interface, so sample interface code is widely available for a variety of microcontrollers. This is the smallest package we know of for this familiar interface. You can find sample HD44780 LCD interface code written for a variety of AVR microcontrollers as part of the Pololu AVR library. The display is 8 character 2 line display that has a very clear and high contrast black text upon a Blue background/backlight. RoboticsBD
| General Specification | |
| Display | 8×2 |
| VA | 37.8ｘ16 |
| Controller | HD44780 |
| Character | 2.96ｘ5.56 |
| Driver | 44577 |
| LCD | STN Blue |
| Backlight | LED Blue |
| Length (mm) | 58 |
| Width (mm) | 32 |
| Height (mm) | 10 |
| Weight (gm) | 15 |
| Shipment Weight | 0.033 kg |
| Shipment Dimensions | 9 × 5 × 1 cm |
1 x LCD Module 8x2 Characters Display
The latest price of LCD Module 8x2 Characters Display in Bangladesh is BDT 250 You can buy the LCD Module 8x2 Characters Display at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
