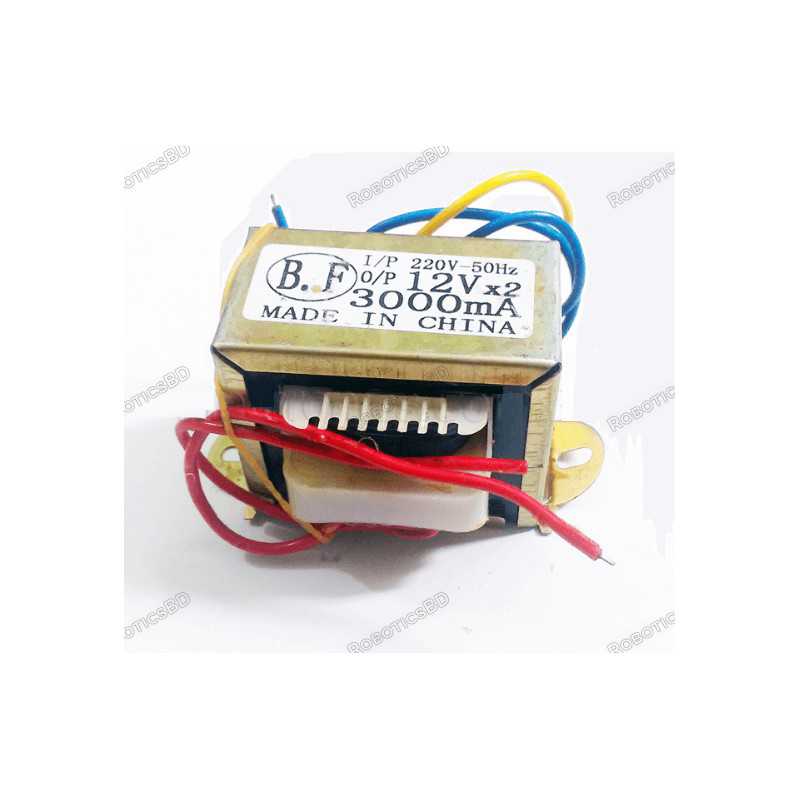

12-0-12 3 Amp Step-Down Transformer is a general-purpose chassis mounting mains transformer. The transformer has 230V primary winding and non-centre tapped secondary winding. The transformer has flying coloured insulated connecting leads ( Approx 100 mm long ). The Transformer act as a step down transformer reducing AC – 230V to AC – 12V. RoboticsBD
The Transformer gives outputs of 12V and 0V. The Transformer’s construction is written below with details of Solid Core and Winding.
The transformer is a static electrical device that transfers energy by inductive coupling between its winding circuits. A varying current in the primary winding creates a varying magnetic flux in the transformer’s core and thus a varying magnetic flux through the secondary winding. This varying magnetic flux induces a varying electromotive force (E.M.F) or voltage in the secondary winding. The transformer has cores made of high permeability silicon steel. The steel has a permeability many times that of free space and the core thus serving to greatly reduce the magnetizing current and confine the flux to a path that closely couples the winding. RoboticsBD
| General Specification | |
| Input Voltage (V AC) | 230V AC |
| Output Voltage(V) | 12V or 0V |
| Max Output Current (mA) | 3000 |
| Winding Type | Copper |
| Mounting Type | Vertical mount type |
| Shipment Weight | 0.521 kg |
| Shipment Dimensions | 10 × 6 × 5 cm |
1 x Transformer 12V 3A
The latest price of Power Transformer 12V 3A in Bangladesh is BDT 345 You can buy the Power Transformer 12V 3A at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
Reference: RBD-1173
