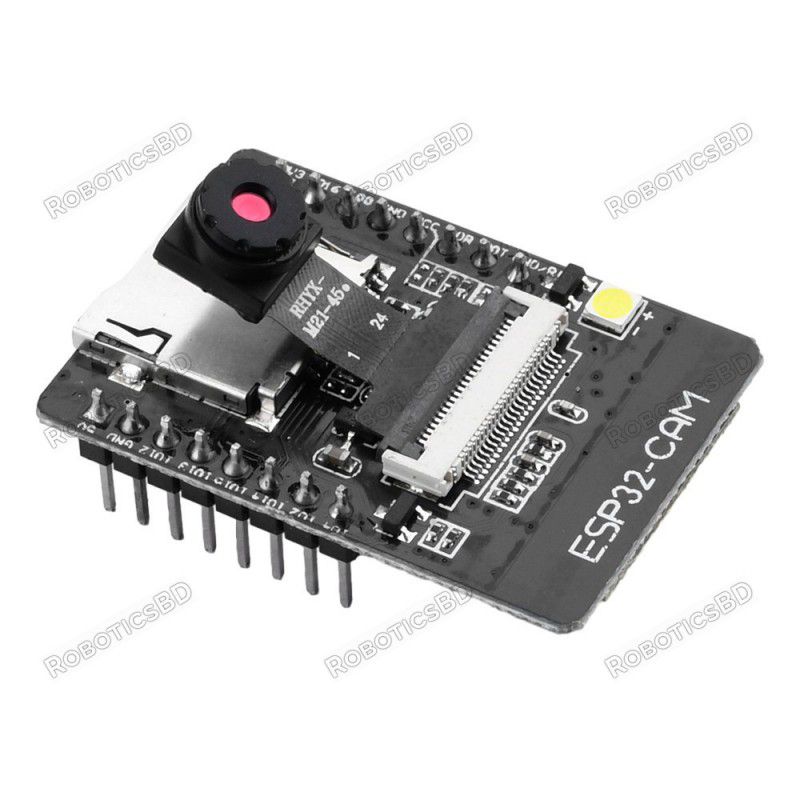

The ESP32-CAM development board featuring the RHYX-M21-45 camera module is a compact, highly integrated IoT solution.
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement
The ESP32-CAM development board featuring the RHYX-M21-45 camera module is a compact, highly integrated IoT solution that supports Wi-Fi and Bluetooth dual-mode communication. Designed for low-power applications, this board is ideal for embedded systems requiring wireless visual data, face detection, or image transmission. It offers robust processing capability, an onboard PCB antenna, and micro-SD card support, all in a space-saving form factor.
Whether you're developing a smart home camera, automated farming solution, or intelligent object recognition system, this module is your go-to choice for powerful wireless image processing and control.
E(461) camera: JPEG format is not supported on this sensor // config.pixel_format = PIXFORMAT_JPEG; // for streaming
config.pixel_format = PIXFORMAT_RGB565; // for face detection/recognition
Comment out the JPEG line and use PIXFORMAT_RGB565 for compatibility.The ESP32 CAM does not come pre-assembled with the camera. You'll need to connect the camera ribbon cable to the board, a task which can be somewhat challenging. It's essential to ensure proper connection, as the camera will not function otherwise. Forceful insertion can damage both the camera and the connector. We recommend using tweezers for precision and urge you to exercise patience during this process.
Key Features:
Built-in RHYX-M21-45 Camera Module
Dual-mode Wireless: 802.11 b/g/n WiFi + Bluetooth 4.2 (BR/EDR + BLE)
Onboard PCB Antenna with 2dBi Gain
Supports RGB565 Output (suitable for face detection and recognition)
Deep sleep mode for ultra-low power IoT applications
Micro-SD card support (up to 4GB) for image and video storage
Integrated GPIO for additional sensors and peripherals
Supports standard interfaces: UART, SPI, I2C, PWM
Technical Specifications:
Operating Voltage: 4.75–5.25V (5V recommended)
Flash Memory: 32Mbit
Internal RAM: 520KB
IO Ports: 9
Serial Port Baud Rate: 115200bps (default)
TF Card Support: up to 4GB
Image Format Support: RGB565 (exclusive for RHYX-M21-45)
Transmit Power:
802.11b: 17 ± 2dBm
802.11g: 14 ± 2dBm
802.11n: 13 ± 2dBm
Receive Sensitivity:
CCK 1Mbps: -90dBm
CCK 11Mbps: -85dBm
6Mbps (1/2 BPSK): -88dBm
54Mbps (64-QAM): -70dBm
MCS7: -67dBm
Power Consumption:
Flash OFF: 180mA
Flash ON Max Brightness: 310mA
Deep Sleep: 6mA
Modem Sleep: 20mA
Light Sleep: 6.7mA
Temperature Range:
Operating: -20°C to 70°C
Storage: -40°C to 125°C, <90% RH
Security: WPA/WPA2/WPA2-Enterprise/WPS
Applications:
Smart Home Surveillance
IoT Visual Mapping
Intelligent Agriculture Monitoring
Wireless QR Code Recognition
Wireless Positioning Systems
Face Detection Systems
Remote Wildlife or Environment Monitoring
Package Includes:
1 x ESP32-CAM Development Board with RHYX-M21-45 Camera Module
Why Choose This Product?
This ESP32-CAM board with RHYX-M21-45 offers the perfect balance between performance, compact design, and low power usage. Its RGB565 format ensures compatibility with vision AI projects, while the WiFi + Bluetooth integration enables seamless data transmission. Ideal for makers, developers, and IoT solution providers.
Take your IoT vision project to the next level—order the ESP32-CAM RHYX-M21-45 module now and bring intelligence to your wireless imaging systems!
The latest price of ESP32-CAM Development Board with RHYX-M21-45 Camera Module in Bangladesh is BDT 840 You can buy the ESP32-CAM Development Board with RHYX-M21-45 Camera Module at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
