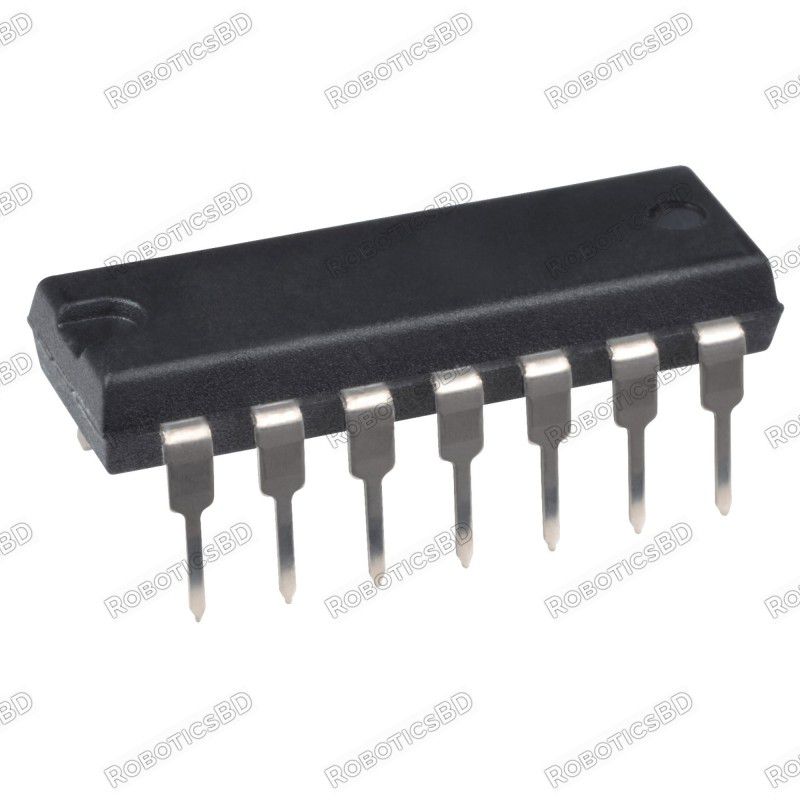

The 7486 is a quad 2-input exclusive-OR gate integrated circuit. It performs the logic function of exclusive-OR on two binary inputs and produces a binary output. It is used in digital circuits for applications such as binary addition, parity checkers, and code converters. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Boolean logic gates: The 7486 IC can be used to implement a variety of Boolean logic gates such as AND, OR, and XOR gates.
Arithmetic functions: The 7486 can be used to perform arithmetic functions such as addition and subtraction.
Code conversion: The 7486 can be used to convert between binary and decimal number systems, as well as perform binary-to-gray code conversions.
| General Specification | |
| Mounting Type | Through Hole |
| Product Series | DM74HC86 |
| Weight (gm) | 1 (approx.) |
| Shipment Weight | 0.01 kg |
| Shipment Dimensions | 3 × 3 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x 7486 XOR Gate
The latest price of 7486 XOR Gate in Bangladesh is BDT 25 You can buy the 7486 XOR Gate at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
