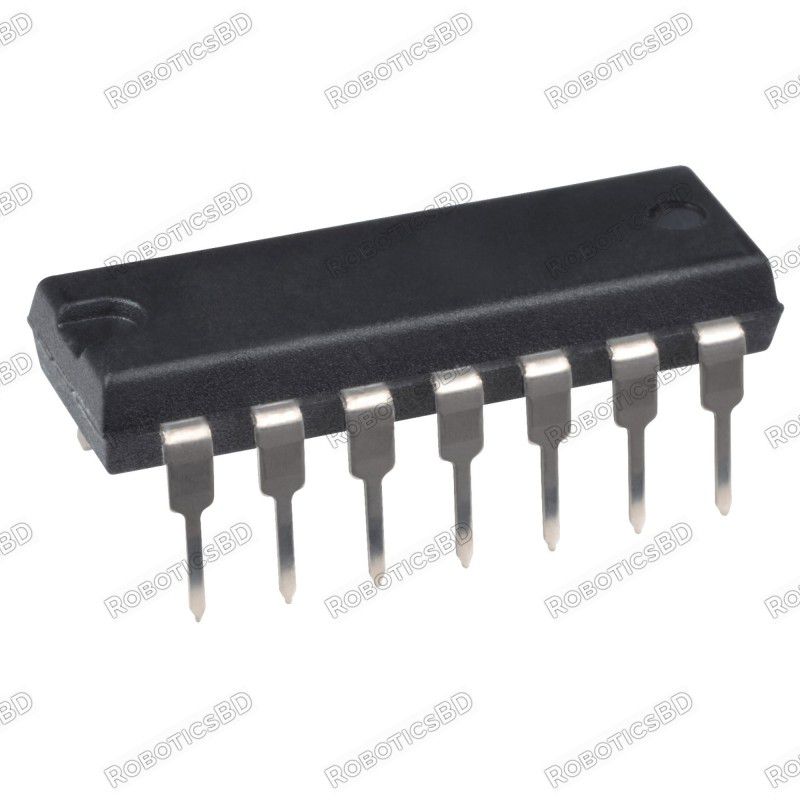

The CD4075 is a CMOS chip with three 3-input OR gates. Because each gate has three inputs and it has three gates inside, it’s usually called a Triple 3-Input OR Gate. Featured By RoboticsBD.
An OR gate is a logic gate that outputs HIGH if either of its inputs is HIGH. Each of the OR-gates in this chip has 3 inputs.
Product Images are shown for illustrative purposes only and may differ from the actual product.
Note: Product images/ Components brand may vary from actual product as our stock rotates.
| General Specification | |
| Supply Voltage (VCC) | 7 V |
| Logic Gate | OR gate |
| Operating free-air temperature range | 0°C to +70°C |
| Storage temperature range | –65°C to +150°C |
| Shipment Weight | 0.003 kg |
| Shipment Dimensions | 3 × 3 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
1 x IC 4075 3 Input OR Gate
The latest price of IC 4075 3 Input OR Gate in Bangladesh is BDT 40 You can buy the IC 4075 3 Input OR Gate at best price from our RoboticsBD or visit RoboticsBD Office.
|
