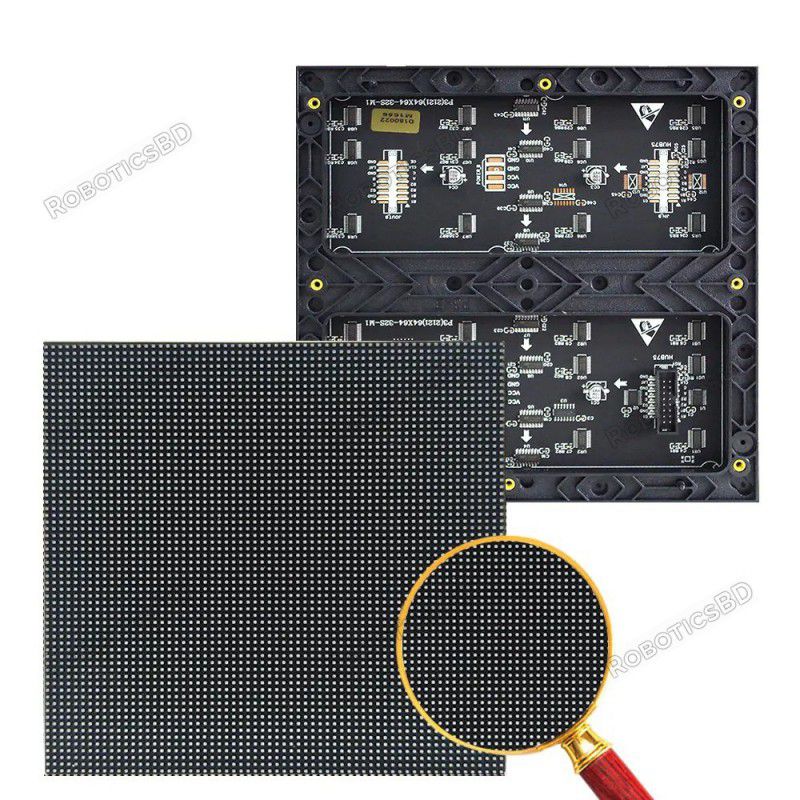

The LED Display Panel 64x64 P3 RGB is a high-quality, full-color RGB LED matrix ideal for dynamic visual displays, DIY desktop screens, and wall-mounted projects. Featuring 4096 individual RGB LEDs with a 3mm pixel pitch, this panel delivers vivid colors, smooth animations, and crisp text rendering. Designed to be compatible with platforms like Raspberry Pi and Arduino, it is perfect for makers, hobbyists, and developers looking to build impressive visual applications.
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement
The LED Display Panel 64x64 P3 RGB is a high-quality, full-color RGB LED matrix ideal for dynamic visual displays, DIY desktop screens, and wall-mounted projects. Featuring 4096 individual RGB LEDs with a 3mm pixel pitch, this panel delivers vivid colors, smooth animations, and crisp text rendering. Designed to be compatible with platforms like Raspberry Pi and Arduino, it is perfect for makers, hobbyists, and developers looking to build impressive visual applications.
With onboard HUB75 headers for input and output, the panel supports cascading multiple displays for expanded projects. It comes with open-source resources and tutorials to help you get started quickly, whether for standalone displays, scrolling marquees, or custom lighting installations.
High-Resolution Display: 64 × 64 pixels, with a tight 3mm pitch for crisp visuals.
Vivid Full Color: 4096 individual RGB LEDs capable of displaying 16.7 million colors.
Compact Size: Panel dimensions 192mm × 192mm, ideal for desktop or wall-mounted displays.
Expandable: Features dual HUB75 headers for daisy-chaining multiple panels.
Wide Compatibility: Supports Raspberry Pi, Arduino, and other popular microcontrollers.
Adjustable Brightness: Up to 1500cd/m² brightness with 14-bit grayscale per color.
Open-Source Resources: Comes with tutorials and demos for easy setup and development.
| Feature | Specification |
|---|---|
| Model | P3 RGB |
| Chip Brand | Epistar |
| Pixel Pitch | 3mm |
| Module Size | 192mm x 192mm |
| Module Resolution | 64 × 64 dots |
| Pixel Density | 111,111 dots/m² |
| LED Type | SMD2121 |
| Pixel Configuration | 1R1G1B |
| Red Wavelength | 625 ± 2nm |
| Green Wavelength | 525 ± 2nm |
| Blue Wavelength | 470 ± 2nm |
| Viewing Distance | ≥2m |
| Viewing Angle | 120° horizontal, 90° vertical |
| Maximum Power Consumption | 20W |
| Brightness | 1500cd/m² |
| Gray Scale | 14 bits per color |
| Color Temperature | 6500K |
| Control Method | Synchronization or Asynchronization |
| Driving Method | 1/32 Scanning |
| Frame Frequency | 60Hz |
| Refresh Rate | ≥600Hz |
| Operating Voltage | DC 5V |
| Waterproof Rating | IP54 |
| MTBF (Mean Time Between Failures) | More than 8000 hours |
DIY desktop or wall-mounted LED displays
Animated signage and advertising boards
Custom scrolling text displays
Interactive art installations
Visual effects in home automation projects
Educational projects for learning programming and electronics
Display controller (not included)
Power supply: 5V DC regulated source
Data cables (HUB75)
1 x 64x64 P3 RGB LED Display Panel
Brilliant full-color performance with tight pixel pitch for detailed visuals
Easy integration with popular platforms like Raspberry Pi and Arduino
Expandable and scalable for larger creative or commercial projects
Durable and reliable with IP54 protection and a long operational lifespan
Create dynamic, colorful, and impressive visual projects with the LED Display Panel 64x64 P3 RGB.
Order now and bring your creative ideas to life with vivid precision and flexible control!
The latest price of LED Display Panel 64x64 P3 RGB in Bangladesh is BDT 2,105 You can buy the LED Display Panel 64x64 P3 RGB at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
