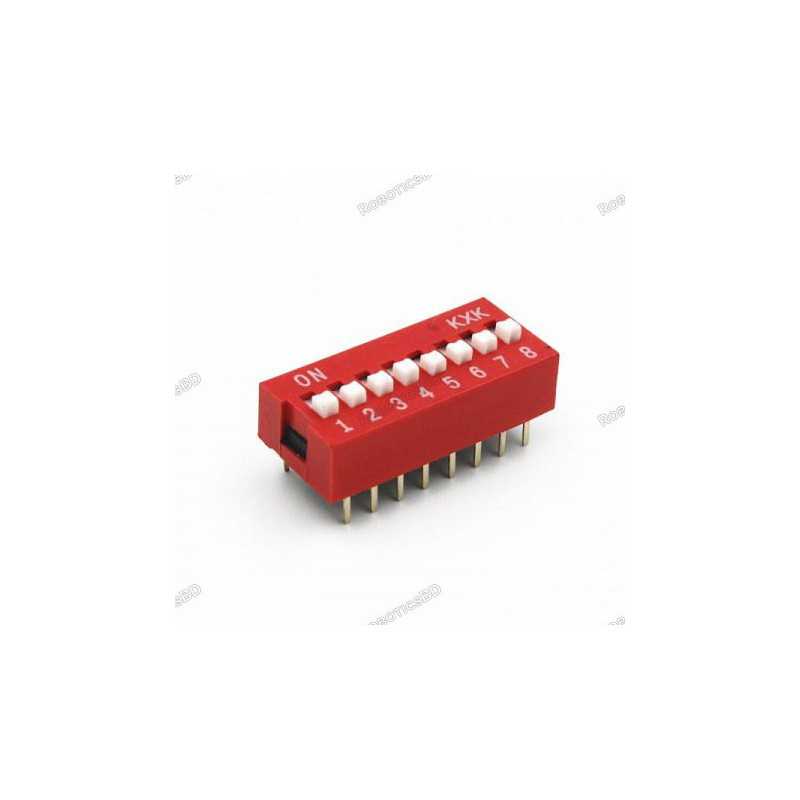

It is a 2.54mm Pitch 8 Way DIP Slide Switch. The slide switch is widely used in the modulation of the CPU, wireless communication, broadcast, and TV, in the software programming for the automated equipment, and in the self-control of the NC equipment and other instruments and meters. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Voltage(V) | 30V DC |
| Operating Current (A) | 0.15 |
| No. of Pins | 8 |
| Pin Spacing (mm) | 2.54 |
| Mounting Type | Through Hole |
| Operating Temperature Range (°C) | -40 to 85 |
| Mech. & Electrical Lifecycle | ≈ 2000 |
| Length (mm) | 22 |
| Width (mm) | 10 |
| Height (mm) | 6.5 |
| Weight (gm) | 1 (approx) (each) |
| Shipment Weight | 0.05 kg |
| Shipment Dimensions | 3 × 3 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x 2.54mm Pitch 8 Way DIP Slide Switch.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of DIP Switch - 8 Position in Bangladesh is BDT 35 You can buy the DIP Switch - 8 Position at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
