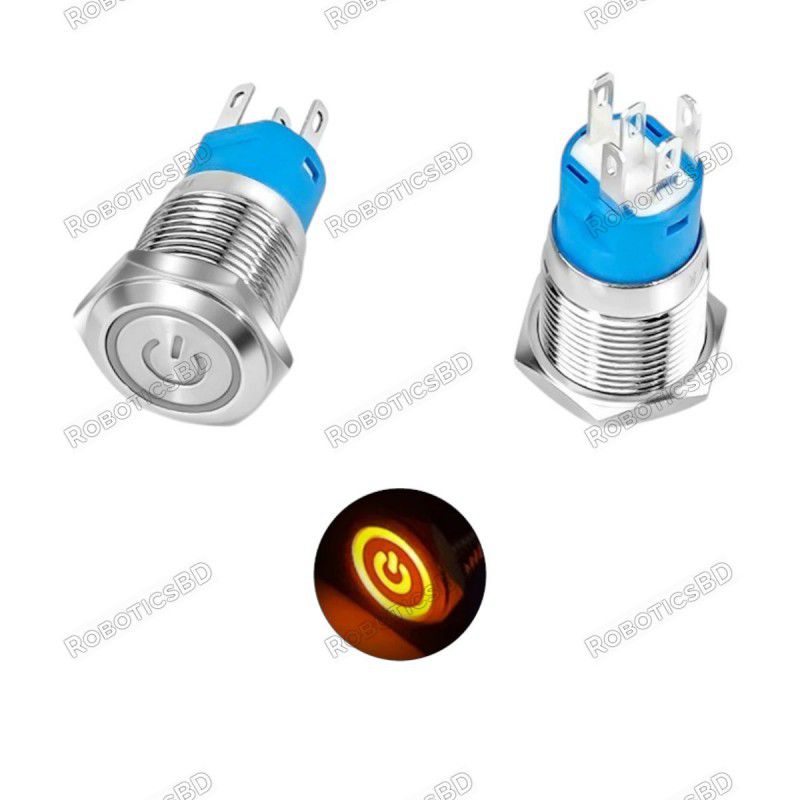

Enhance your control panels with the stylish and durable Metal Self-Locking Switch with Orange LED Ring - 16mm Latching. This chrome-plated metal button features a sleek design, a vibrant Orange LED ring, and a latching pushbutton mechanism. It's perfect for a wide range of applications, from industrial control panels to home automation projects. Featured By RoboticsBD.
This button is a latching push button, when you press and release it the 'normally-open' contact shorts to the common contact and stays that way. When you press and release it a second time, the contacts open up again.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Panel Cutout | Φ16mm |
| Rating | 3A/220VAC |
| Contact Configuration | 1NO1NC |
| Protection Class | IP65,IK08 |
| Pin Terminal | 2.8×0.5mm |
| Switching | C(Single-break slow-motion contact) |
| Panel Thickness | 1～8mm |
| Torque | About 0.6Nm |
| Mechanical Life | 500,000 cycles |
| Electrical Life | 50,000 cycles |
| Actuator | Stainless steel/Chrome plated brass/Black plated brass |
| Body | Stainless steel/Chrome plated brass/Black plated brass |
| Base | PA |
| Actuation Force | About 1.7N |
| Actuation Travel | About 3mm |
| Shipment Weight | 0.015 kg |
| Shipment Dimensions | 7 × 5 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x Metal Power Self-Locking Switch with Orange- 16mm Latching
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of Metal Power Self-Locking Switch with Orange- 16mm Latching in Bangladesh is BDT 249 You can buy the Metal Power Self-Locking Switch with Orange- 16mm Latching at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
