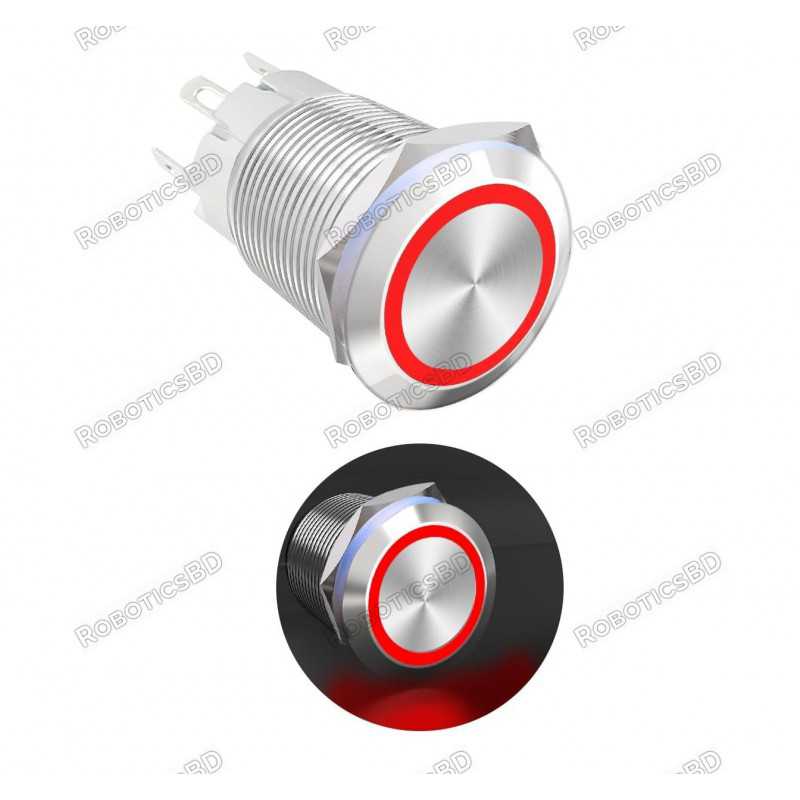

Enhance your control panels with the stylish and durable Metal Pushbutton with Red LED Ring - 16mm Momentary. This chrome-plated metal button features a sleek design, a bright red LED ring, and a momentary pushbutton mechanism. It's perfect for a wide range of applications, from industrial control panels to home automation projects. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Drill hole diameter | 16mm |
| Switch rating | 3A / 250VDC |
| Switch contacts | 1 NO, 1 NC |
| Material | Chrome plated brass |
| Contact resistance | 1000 Mohm |
| Temperature | -20 C to +55 C |
| Mechanical life | > 500,000 |
| Electrical life | > 50,000 |
| Panel thickness | 1-13mm |
| Operating pressure | 1.5 - 2.5 N |
| Operating stroke | 2mm |
| Lamp rated voltage | 6V |
| Shipment Weight | 0.015 kg |
| Shipment Dimensions | 5 × 3 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x Metal Pushbutton with Red LED Ring - 16mm Momentary
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of Metal Pushbutton with Red LED Ring - 16mm Momentary in Bangladesh is BDT 219 You can buy the Metal Pushbutton with Red LED Ring - 16mm Momentary at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
