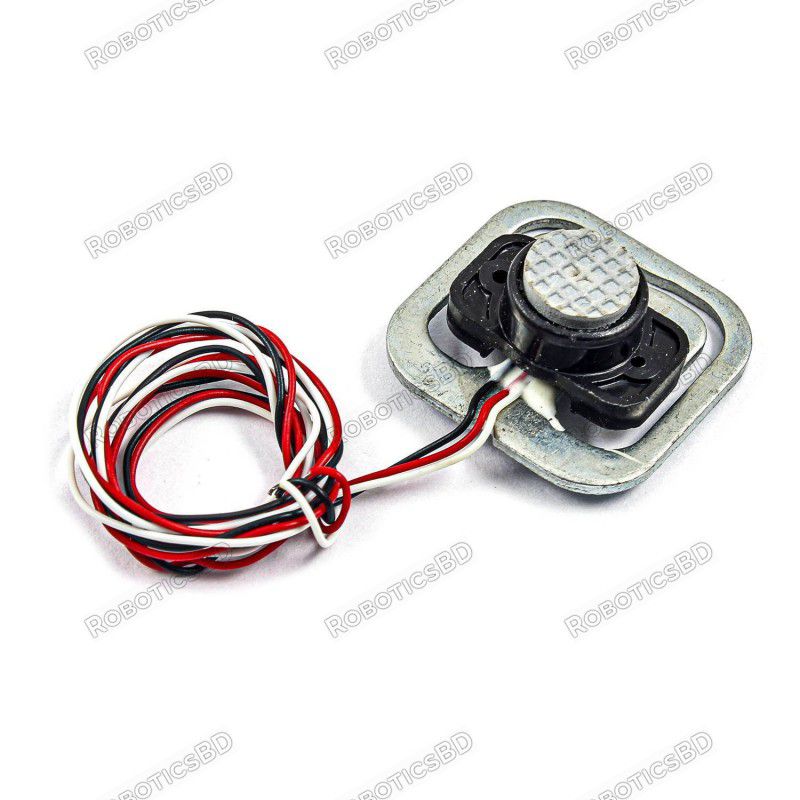

The YZC-161B 8KG Half Bridge Weight Scale Sensor is a high-quality, precision load cell designed to accurately convert mechanical force into a measurable electrical signal. Made from durable alloy steel and rated for up to 8 kilograms, this sensor is perfect for applications requiring reliable weight or force measurements, including electronic scales, industrial weighing systems, and DIY measurement projects.
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement
The YZC-161B 8KG Half Bridge Weight Scale Sensor is a high-quality, precision load cell designed to accurately convert mechanical force into a measurable electrical signal. Made from durable alloy steel and rated for up to 8 kilograms, this sensor is perfect for applications requiring reliable weight or force measurements, including electronic scales, industrial weighing systems, and DIY measurement projects.
Utilizing a strain gauge mechanism, the sensor detects minute deformations of its spring element under load, converting these changes into an analog electrical output. With an IP65 protection rating, it is resistant to dust and moisture, making it suitable for a wide range of environments. The YZC-161B features excellent linearity, hysteresis, and repeatability, ensuring stable and consistent readings over time.
Material: High-strength Alloy Steel for durability and reliability
Load Capacity: Rated up to 8Kg
Output Type: Analog signal for easy integration with microcontrollers and ADCs
High Accuracy: Excellent nonlinearity, hysteresis, and repeatability performance
Protection Level: IP65 dust and water resistance
Compact Size: Ideal for embedded and space-constrained applications
Recommended Input Voltage: 5V (maximum up to 8V)
Rated Load: 8Kg
Rated Output: 1.0 ± 0.1 mV/V
Nonlinearity: 0.08% F.S
Hysteresis: 0.1% F.S
Repeatability: 0.05% F.S
Temperature Effect on Output: 0.02% F.S/°C
Temperature Effect on Zero: 0.02% F.S/°C
Zero Balance: ±0.1000 mV/V
Input Impedance: 1000 ± 20% Ω
Output Impedance: 1000 ± 10% Ω
Insulation Resistance: > 2000 MΩ
Safe Overload Limit: 120% F.S
Ultimate Overload Limit: 150% F.S
Recommended Input Voltage: 5V DC
Maximum Working Voltage: 8V DC
Protection Rating: IP65
Operating Temperature Range: -20°C to +65°C
Dimensions: 26mm x 26mm x 17mm
Mount the load cell securely using the provided mounting holes.
Connect the analog output terminals to a signal amplifier (such as HX711) or directly to a microcontroller's ADC input.
Calibrate the system by measuring known weights and adjusting the software settings accordingly.
Monitor the voltage change output to determine the applied load.
Electronic weighing scales
Industrial weight monitoring systems
Force measurement in automation systems
Robotic arm force detection
DIY weight sensing projects
Smart kitchen and laboratory scales
1 x YZC-161B 8KG Half Bridge Weight Scale Sensor
Reliable and accurate force measurement with excellent repeatability
Durable alloy steel construction for long service life
IP65-rated protection for challenging environmental conditions
Compact size and easy integration for both industrial and DIY applications
Cost-effective solution for precision load and force detection
Achieve accurate and stable weight measurements with the rugged and precise YZC-161B 8KG Half Bridge Weight Scale Sensor.
Order now and bring reliable force sensing capabilities to your next project!
The latest price of YZC-161B 8KG Half Bridge Weight Scale Sensor in Bangladesh is BDT 350 You can buy the YZC-161B 8KG Half Bridge Weight Scale Sensor at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
