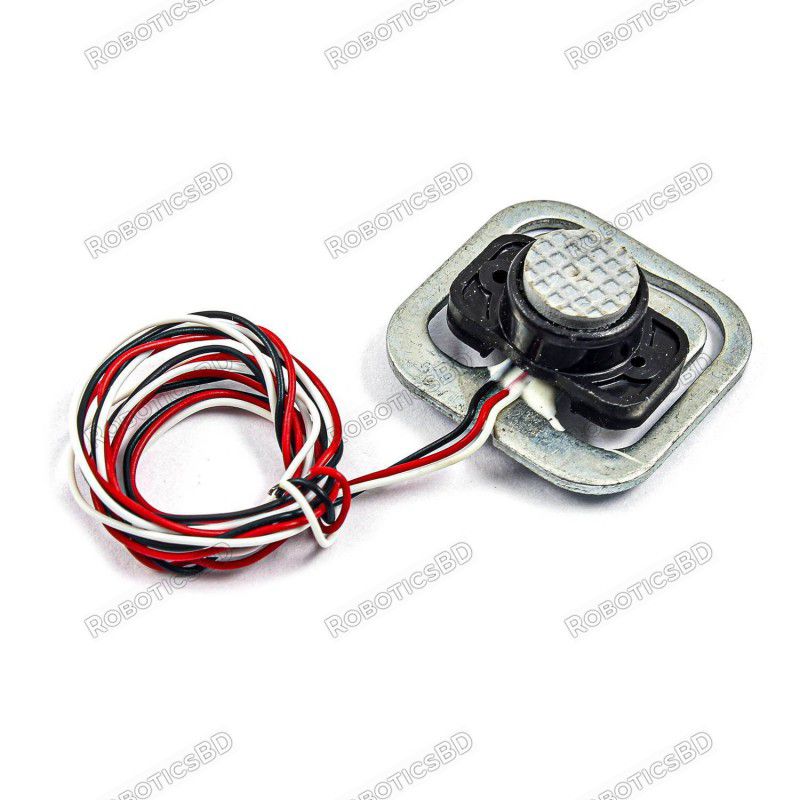

The YZC-161B 5KG Half Bridge Weight Scale Sensor is a compact and reliable load cell designed to measure force and weight with high accuracy. Featuring a strain gauge half-bridge structure, it generates an analog voltage signal proportional to the applied load, making it ideal for building precise weighing devices such as baby scales, platform scales, hopper scales, and other electronic weighing systems.
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement
The YZC-161B 5KG Half Bridge Weight Scale Sensor is a compact and reliable load cell designed to measure force and weight with high accuracy. Featuring a strain gauge half-bridge structure, it generates an analog voltage signal proportional to the applied load, making it ideal for building precise weighing devices such as baby scales, platform scales, hopper scales, and other electronic weighing systems.
Constructed from durable alloy steel and rated for 5 kilograms of load, the YZC-161B offers excellent linearity, repeatability, and temperature stability. The sensor features an IP65 protection rating, ensuring it performs reliably even in environments exposed to dust and moisture. For enhanced accuracy and larger capacity, multiple sensors can be installed together in multi-point configurations.
Accurate Force Measurement: Rated load capacity of 5Kg
Analog Output Signal: Easy integration with amplifiers and microcontrollers
High Precision: Excellent nonlinearity, hysteresis, and repeatability
Durable Alloy Steel Construction: Ensures long-lasting and stable performance
Compact Size: Ideal for embedded applications
IP65 Protection: Resistant to dust and water splashes
Simple Wiring: Three-wire configuration (Red - supply, Black - ground, White - signal)
Flexible Deployment: Combine multiple load cells to increase measuring capacity
| Feature | Specification |
|---|---|
| Model | YZC-161B |
| Output Type | Analog |
| Recommended Input Voltage | 5V DC |
| Maximum Input Voltage | 8V DC |
| Rated Load | 5Kg |
| Rated Output | 1.0 ±0.1mV/V |
| Nonlinearity | 0.08% F.S |
| Hysteresis | 0.1% F.S |
| Repeatability | 0.05% F.S |
| Temperature Effect on Output | 0.02% F.S/°C |
| Temperature Effect on Zero | 0.02% F.S/°C |
| Zero Balance | ±0.1000 mV/V |
| Input Impedance | 1000 ±20% Ω |
| Output Impedance | 1000 ±10% Ω |
| Insulation Resistance | 2000 MΩ |
| Safe Overload | 120% F.S |
| Ultimate Overload | 150% F.S |
| Protection Level | IP65 |
| Material | Alloy Steel |
| Operating Temperature Range | -20°C to +65°C |
| Sensor Dimensions | 26mm x 26mm x 10mm |
Mount the load cell securely in your device.
Connect the three wires correctly:
Red: Power Supply (+)
Black: Ground (-)
White: Output Signal
Interface the output signal with an amplifier module like HX711 for precision analog-to-digital conversion.
Calibrate your system with known weights to fine-tune accuracy.
For higher capacity and improved stability, combine multiple YZC-161B sensors in a parallel arrangement.
Electronic baby scales
Kitchen and food weighing scales
Platform and hopper scales
Belt weighing systems
Industrial automation weight detection
DIY electronic weighing projects
1 x YZC-161B 5KG Half Bridge Weight Scale Sensor
High precision and stable output for reliable weight measurements
Compact and robust design suitable for space-constrained applications
Cost-effective solution for building professional and DIY weighing systems
Resistant to dust and moisture with an IP65 protection rating
Easy integration into electronic systems with simple three-wire output
Accurately measure force and weight in your next project with the durable and precise YZC-161B 5KG Half Bridge Weight Scale Sensor.
Order now and build highly accurate and reliable weighing devices with ease!
The latest price of YZC-161B 5KG Half Bridge Weight Scale Sensor in Bangladesh is BDT 450 You can buy the YZC-161B 5KG Half Bridge Weight Scale Sensor at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
