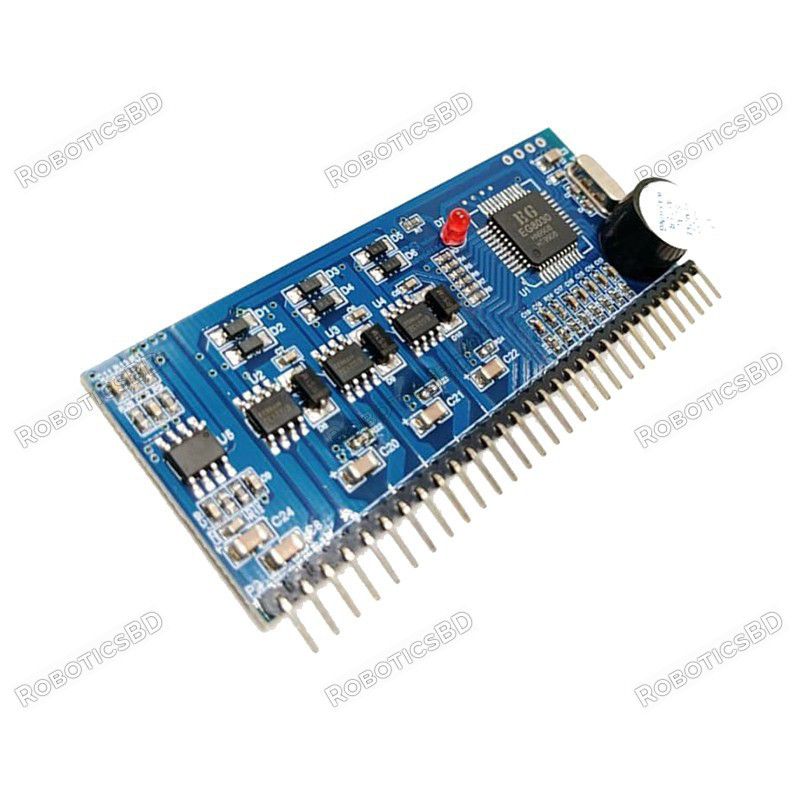

The EGS031/032 Three-Phase Pure Sine Wave Inverter Module is an advanced inverter driver that utilizes the EG8030 control chip to convert DC power into a stable three-phase pure sine wave AC output. Designed for high-efficiency power conversion, this module requires an external power backplane and a three-phase power frequency transformer to form a complete inverter system.
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement
The EGS031/032 Three-Phase Pure Sine Wave Inverter Module is an advanced inverter driver that utilizes the EG8030 control chip to convert DC power into a stable three-phase pure sine wave AC output. Designed for high-efficiency power conversion, this module requires an external power backplane and a three-phase power frequency transformer to form a complete inverter system.
The EGS031/032 has been successfully tested on a 2000W prototype, making it ideal for low-volume production. It also provides the flexibility to scale up using the EG8030 chip along with a provided schematic and PCB design files for independent production.
✔ EG8030-Based Inverter Control – Ensures stable, high-efficiency operation
✔ Three-Phase Pure Sine Wave Output – Ideal for industrial and commercial applications
✔ High Power Support – Successfully tested for up to 2000W output
✔ Wide Input Voltage Compatibility – Supports 100V max full-bridge bus voltage
✔ Minimal Power Consumption – Ultra-low static power draw (2mA at idle, 0.7mA in disable mode)
✔ External Power Backplane Required – Designed for customized scalability
✔ Ideal for Low-Volume & Scalable Production – Directly use the driver board or manufacture independently with EG8030 and PCB design files
| Feature | Specification |
|---|---|
| Control Chip | EG8030 |
| Input Power Voltage | 100V Max (Full-Bridge Bus Voltage) |
| Module Input Voltage | 5V, 15V |
| Output Power | Depends on power-side board (Tested up to 2000W) |
| Output Waveform | Pure Sine Wave |
| Static Power Consumption | 2mA (Idle), 0.7mA (Disable Mode) |
| Switching Frequency | 600kHz (PSM Mode) |
| Required Components | External power backplane, Three-phase transformer |
| Communication Support | Not Supported |
| Frequency Modulation | Not Supported |
| Dimensions | 100mm x 75mm x 30mm (Approx.) |
1️⃣ Component Assembly
2️⃣ Power Connection
3️⃣ Initial Production & Testing
4️⃣ Scaling Up Production
The latest price of EGS031/032 Three-Phase Pure Sine Wave Inverter Module in Bangladesh is BDT 1,950 You can buy the EGS031/032 Three-Phase Pure Sine Wave Inverter Module at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
