Eachine VR D2 40CH 5 Inches
800 x 480 Raceband 5.8G
Diversity FPV Goggles with
DVR Lens Adjustable
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement

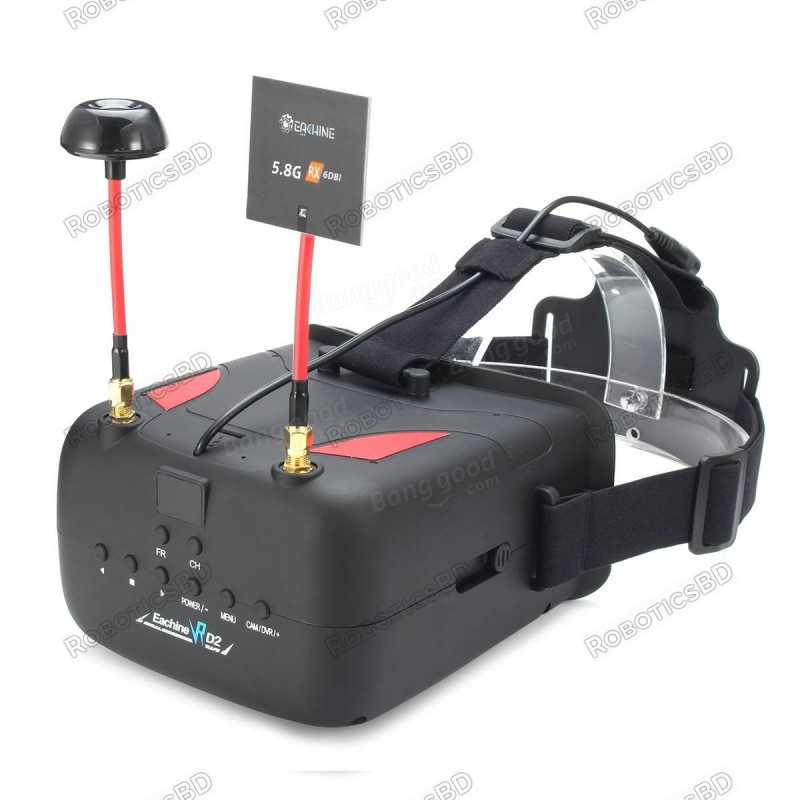

Eachine VR D2 40CH 5 Inches 800 x 480 Raceband 5.8G Diversity FPV Goggles with DVR Lens Adjustable
New firmware, Click here.
Specification: User Manual
Brand name: Eachine
Item name: VR D2 FPV Goggles
Screen size: 5 inches
Screen resolution: 800x480
Frequency channel: built-in 40CH 5.8GHz receiver
Battery : 2S 7.4-8.4V Lipo battery
Battery work time: 2.5-3 hours
Operating current: 600--750mA
Receiver sensitivity: -95dBM
Antenna connector: RP-SMA
DVR Max Support: 64G TF Card
Goggles weight: 294.7g (without antenna)
Antenna weight: 29 g (Flat: 13g, mushroom: 16g)
Dimension(mm): 150 X152 X96 (without antenna and antenne mount)
Feature:
With white noise and snow screen
Dual receiver to get strong and steady signal
Support Lens Adjustable
Built-in DVR function, record every wonderful moment and replay
With comfortable face sponge
With accurate capacity, 7.4V 2000mAh Lipo battery consists of 2 x 18650 battery
Bulit-in low-voltage alarm function, when the battery volttage is below 7V, the buzzer alarm
Support one key into power saving mode
New firmware, Click here.
Package Included:
1 X VR D2 FPV Goggles
1 X Mushroom antenna
1 X Flat antenna
1 X 7.4V 2200mAh Lipo battery
1 X Charger
1 X User Manual
The latest price of Eachine VR D2 40CH 5 Inches 800 x 480 Raceband 5.8G Diversity FPV Goggles with DVR Lens Adjustable in Bangladesh is BDT 18,000 You can buy the Eachine VR D2 40CH 5 Inches 800 x 480 Raceband 5.8G Diversity FPV Goggles with DVR Lens Adjustable at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
