The fingerprint algorithm extracts features from the acquired fingerprint image and represents the fingerprint information. The storage, comparison, and search of fingerprints are all done by operating fingerprint features. RoboticsBD
Fingerprint processing includes two processes: fingerprint registration process and fingerprint matching process (in which fingerprint matching is divided into fingerprint comparison (1:1) and fingerprint search (1:N) two ways). RoboticsBD
When the fingerprint is registered, two fingerprints are entered for each fingerprint, and the input image is processed twice. The synthesis module is stored in the module.
When the fingerprint is matched, the fingerprint sensor is used to input the fingerprint image to be verified and processed, and then it is compared with the fingerprint module in the module (if it is matched with a module specified in the module, it is called fingerprint comparison mode, ie, 1:1 mode. If matching with multiple modules is called fingerprint search, ie 1:N mode, the module gives the matching result (pass or fail). Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Low power consumption, low cost, small size, excellent performance, Professional optical technology, precise module manufacturing technics. Good image processing capabilities can successfully capture an image up to resolution 500 dpi Finger detection function. RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RED ---Arduino 3.3V
Yellow---Arduino D2
White----Arduino D3
Black----Arduino GND
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Resolution | 500dpi |
| Supply current | <60mA |
| Supply voltage | 3.3V |
| Fingerprint image entry time | <1.0 seconds |
| Peak current | <60mA |
| Window area(mm) | 15.3×18.2 |
| Communication Interface | USB/UART |
| Length (mm) | 46 |
| Width (mm) | 21 |
| Height (mm) | 24 |
| Weight (gm) | 20 |
| Shipment Weight | 0.03 kg |
| Shipment Dimensions | 5 × 3 × 2 cm |
Please allow 5% measuring deviation due to manual measurement.

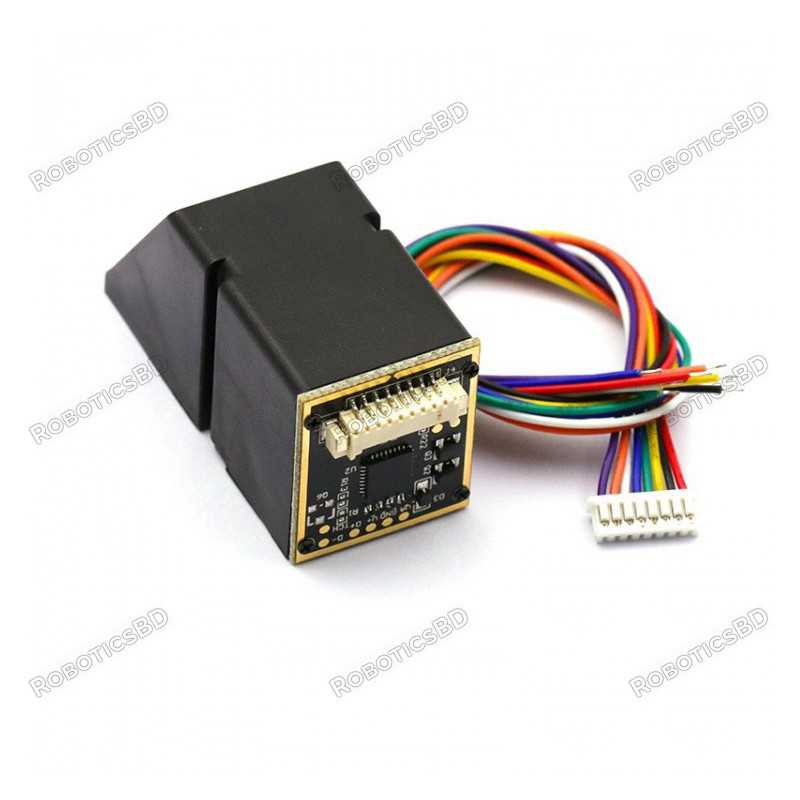

1 x Fingerprint Scanner Sensor JM-101
1 x Connecting Cable(6-pin).
The latest price of AS608 Optical Fingerprint Sensor Fingerprint Module JM-101 in Bangladesh is BDT 1,990 You can buy the AS608 Optical Fingerprint Sensor Fingerprint Module JM-101 at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
