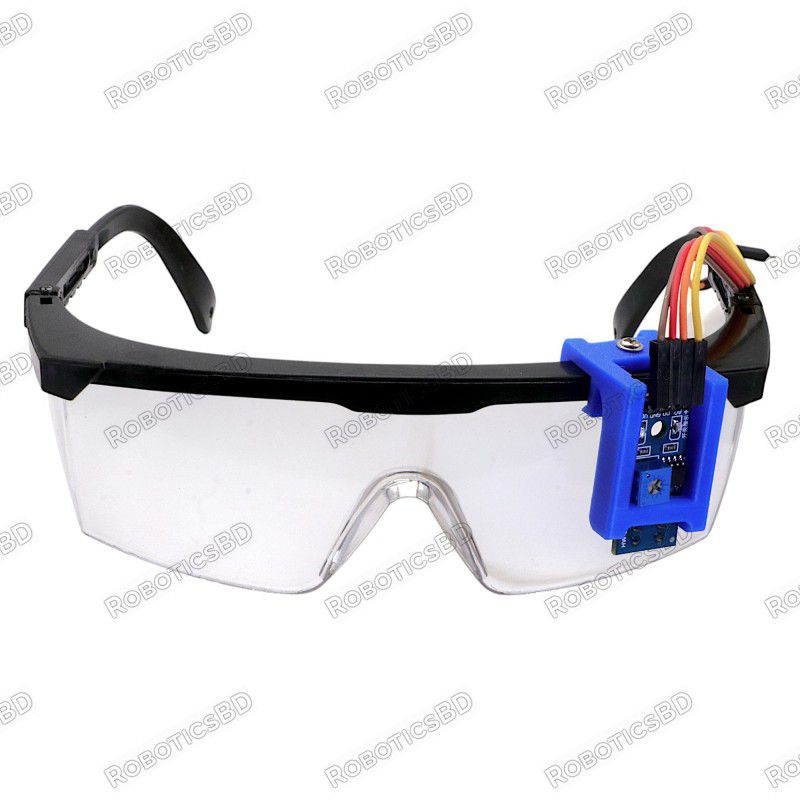

The Eye Blink Detection Analog & Digital Sensor with Goggles is a powerful tool designed for Arduino enthusiasts, developers, and researchers interested in human-computer interaction and biometric sensing.
Why is an analog eyeblink sensor better than a digital eyeblink sensor?
Currently, most eye blink sensors on the market are digital. they can only distinguish between the eye being fully closed or fully open, unable to detect partial blinks or quick blinks. However, the analog sensor provides waveforms. By analyzing analog values, you can detect full blinks, partial blinks, or anomalies like prolonged eye openings. This is why analog sensors are superior to digital sensors.
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement
|
গগলসটি পরার সময় খেয়াল রাখতে হবে যেন আইব্লিঙ্ক সেন্সরটি যেন চোখের বরাবর আসে। যদি না আসে তাহলে গগলসটি নাড়িয়ে চোখে এমনভাবে সেট করতে হবে যেন সেন্সরটি সরাসরি চোখের উপরে থাকে। দরকার পড়লে সেন্সরের পজিশন চেঞ্জ করে নিতে পারেন।
**কোনো মেডিকেল ডিভাইস নয়। |
void setup() {
Serial.begin(9600); // Start serial communication
}
void loop() {
int sensorValue = analogRead(A0); // Read analog pin
Serial.println(sensorValue); // Print to Serial Plotter
delay(10); // Slight delay for smooth plotting
}
void setup() {
Serial.begin(9600); // Start serial communication
pinMode(3, INPUT); // Digital pin D3 as input
}
void loop() {
int blinkState = digitalRead(3); // Read digital output
Serial.println(blinkState); // 1 = blink detected, 0 = no blink
delay(100); // Delay to avoid flooding the serial
}
The Eye Blink Detection Analog & Digital Sensor with Goggles is a powerful tool designed for Arduino enthusiasts, developers, and researchers interested in human-computer interaction and biometric sensing. This ready-to-use module combines an amplified analog signal output and digital threshold detection with a pair of safety goggles to provide a non-intrusive, hands-free solution for tracking eye blinks with precision.
Why Analog Sensor?
Unlike traditional digital-only blink sensors that merely distinguish between open and closed eyes, this advanced analog+digital sensor outputs waveforms. These waveforms allow you to capture full, partial, and quick blinks, as well as unusual eye activity like prolonged open states—making it ideal for more sophisticated projects such as fatigue detection, assistive tech, and research.
Key Features:
Dual analog and digital signal output
Noise-canceling and signal amplification circuitry
No soldering required: Plug & Play with Arduino using color-coded pins
Adjustable sensitivity via onboard potentiometer
Comfortable integrated goggle frame with mount
Easy-to-follow connection diagram included
Lightweight, adjustable, and reusable
Detects subtle blink variations (partial blinks, double blinks, long blinks)
Technical Specifications:
Power Supply: 5V (Compatible with Arduino)
Output: Analog (A0), Digital (D3)
Adjustable sensitivity (screwdriver adjustment)
Indicator LEDs for power and digital output
Goggle-mounted for fixed eye alignment
How to Use:
Wear the goggles and ensure the sensor aligns directly with your eye.
Connect the sensor pins (VCC, GND, A0, D3) to your Arduino or compatible development board.
Use the analog signal for waveform-based detection or the digital signal for simple blink recognition.
Adjust the threshold if needed using the onboard potentiometer.
Applications:
Eye-controlled interfaces
Assistive devices for differently-abled users
Human-computer interaction projects
Drowsiness/fatigue detection systems
Robotics and automation
Educational and research experiments
Package Includes:
1 x Eye Blink Analog & Digital Sensor Module
1 x Pre-mounted Sensor Frame with Goggles
Why Choose This Product?
Whether you're building an accessibility device, experimenting with biometric feedback, or learning about biosignals, this goggle-integrated blink sensor gives you the flexibility of both analog and digital outputs in one simple, no-soldering-required solution.
Note:
Not a medical device.
Not suitable for prolonged wear.
Ensure the sensor is aligned directly above the eye for accurate readings. Adjust goggle position or sensor as necessary.
Unlock new possibilities in eye-based control and biometric sensing—order your Eye Blink Detection Sensor with Goggles today!
| General Specification | |
| Operating Voltage (VDC) | 5V |
| Supply Current (A) | ≥ 20mA |
| Optimal Sensing Distance(mm) | 3 |
| Output Format | Analog and Digital Voltage |
| Length (mm) | 42 |
| Width (mm) | 10 |
| Height (mm) | 10 |
| Weight (gm) | 2 |
| Shipment Weight | 0.005 kg |
| Shipment Dimensions | 12 × 8 × 2.5 cm |
Please allow 5% measuring deviation due to manual measurement.
1 x Eye Blink Analog & Digital Sensor Module
1 x Pre-mounted Sensor Frame with Goggles
The latest price of Eye Blink Detection Analog & Digital Sensor with Goggles High Quality in Bangladesh is BDT 590 You can buy the Eye Blink Detection Analog & Digital Sensor with Goggles High Quality at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
