Ever wanted to feel like Magneto? Well, now you sort of can! Bring the ferromagnetic objects in the world under your control with an Electromagnet
The simplest way to make an electromagnet is to get a solenoid, pass some current through it, and then get a piece of soft iron inside the solenoid. When the current is switched off, the electromagnet is no longer, well, magnetic!
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement
Ever wanted to feel like Magneto? Well, now you sort-of can! Bring the ferromagnetic objects in the world under your control with an Electromagnet
The simplest way to make an electromagnet is to get a solenoid, pass some current through it, and then get a piece of soft iron inside the solenoid. When the current is switched off, the electromagnet is no longer, well, magnetic!
What this means is that you just need to power this here electromagnet with about 5VDC (you don't have to be exact, 4-6V will work fine) and ka-pow, it's now a magnet. Turn off the power and it reverts back to a normal chunk of metal. Since its a coil, you'll need to use a motor or solenoid driver with kick-back protection.
Please note: electromagnets are specified with "holding force", say 10 Kg / 22 lb. This is not how much weight they can pick up! Divide the holding force by 5-10 to get a rough estimate of how heavy a thing it can pick up. So in this case, about 2 Kg / 4 lb max. Note that pick-up weight also depends on a flat surface and max surface contact, and the ferromagnetic metal content. A perfectly flat steel cube will work great, something oddly shaped or covered in rubber or plastic will not! The electromagnet may also be marked with a higher number, such as '15 Kg', but we specify it as '10 Kg' (minimum). The dimensions and power draw are the same.

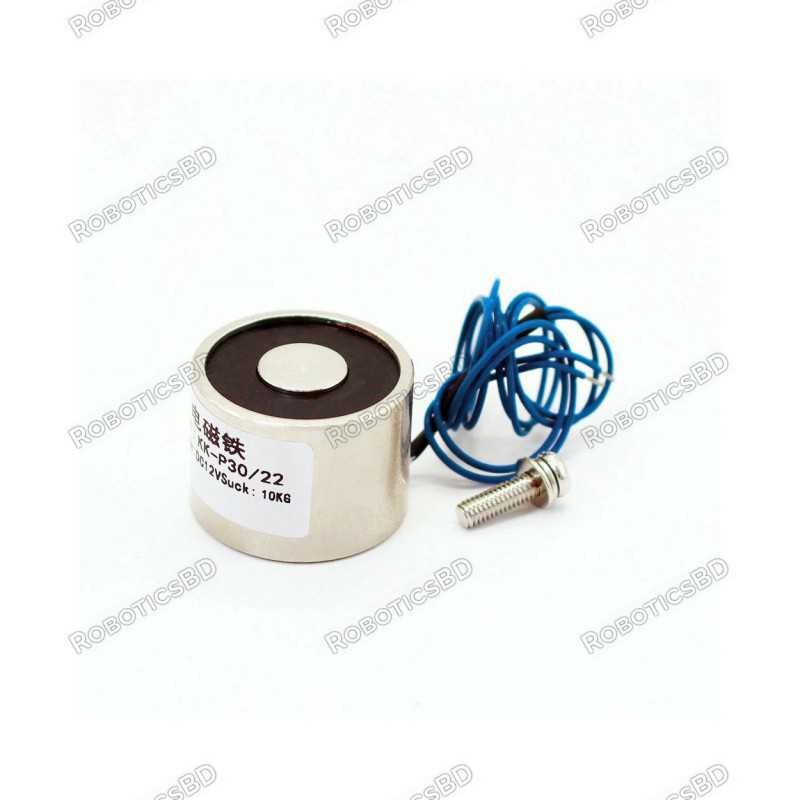

This 5V Electromagnet - 10 Kg Holding Force - P30/22 Solenoid Electromagnet consists of an iron core and a coil to attract magnetic substances, using the magnetic action induced by electric current, only while the current is applied. This compact functional device offers high power with high reliability. The structure and design to release the residual magnetism left after de-energization is also one of its unique features.
An electromagnet is simply a coil of wire. It is usually wound around an iron core. However, it could be wound around an air core, in which case it is called a solenoid. When connected to a DC voltage or current source, the electromagnet becomes energized, creating a magnetic field just like a permanent magnet. The magnetic flux density is proportional to the magnitude of the current flowing in the wire of the electromagnet.
The polarity of the electromagnet is determined by the direction of the current. The north pole of the electromagnet is determined by using your right hand. Wrap your fingers around the coil in the same direction as the current is flowing (conventional current flows from + to -). The direction your thumb is pointing in the direction of the magnetic field so north would come out of the electromagnet in the direction of your thumb. DC electromagnets are principally used to pick up or hold objects
We supply many varieties of electromagnets with a higher power as well as lower, original dimensions, etc to satisfy your unique requirements.
Note: Images may be seen different from actual product in terms of Dimensions
Electromagnets must meet the following conditions to achieve maximum suction:
The latest price of 5V Electromagnet - 10 Kg Holding Force - P30/22 in Bangladesh is BDT 1,020 You can buy the 5V Electromagnet - 10 Kg Holding Force - P30/22 at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
