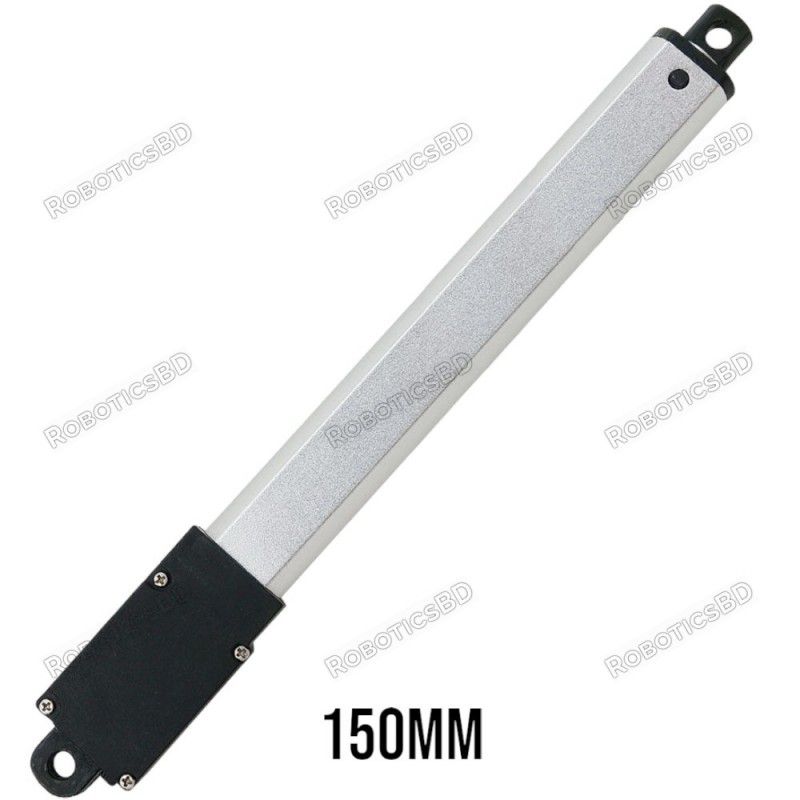

The 12V miniature linear actuator is a powerful and versatile solution for various applications requiring precise linear motion in a compact form factor. This actuator boasts a maximum thrust of 60N and a stroke length of 150mm, making it ideal for projects with limited space but demanding power needs. Featured By RoboticsBD.
Durable Construction:
Engineered for long-lasting performance, this actuator features a high-quality polyamide housing, a robust metal gearbox with wear-resistant gears, and an aluminum alloy telescopic tube and outer tube for excellent corrosion resistance.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications | |
| Voltage | 12V DC |
| Stroke | 150mm |
| Installation Length | 55mm + Stroke Length |
| No-Load Speed | 15mm/s |
| Max. Load | 60N |
| Stroke Rod Material | Aluminum Alloy |
| Outer Tube Material | Aluminum Alloy |
| Gear Material | Steel Alloy |
| Motor Type | Brushed DC Motor |
| Duty Cycle | 10% |
| Plug Standard | Standard two-core wire |
| Operating Temp. | -26°C to 85°C |
| Operating Noise | 45-55 dB (approx.) |
| Shipment Weight | 0.085 kg |
| Shipment Dimensions | 22 x 5 x 5 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x 12V Miniature Linear Actuator 150mm
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of 12V Miniature Linear Actuator 150mm in Bangladesh is BDT 4,995 You can buy the 12V Miniature Linear Actuator 150mm at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
