3D Printer Nozzle M7 Thread Brass 1.
  • 3D Printer Nozzle M7 Thread Brass 1.

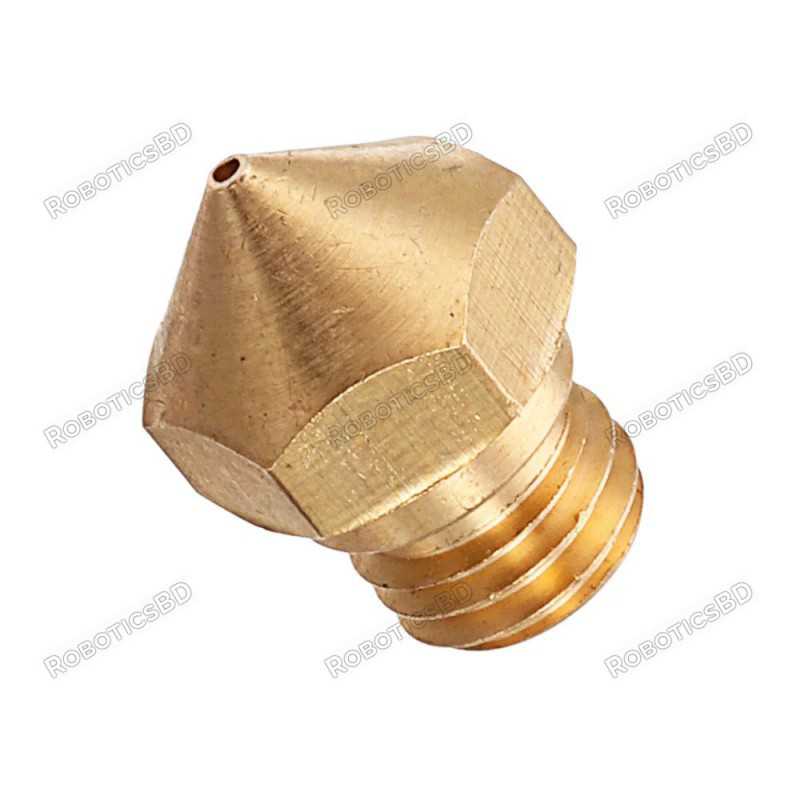

3D Printer Nozzle M7 Thread Brass 1.75mm

RBD-2182
  • Filament Support: 1.75mm
  • Material: High-quality brass
  • Color: Brass color
  • Screw outer diameter: M7

If you are not sure which Nozzle size to choose, Please check our guide in the documentation tab below.

Nozzle Size
BDT 190
Quantity
In-Stock

9 people have purchased this item in last 12 months
10 people recently added this item to the cart
19 items in stock
notifications Notify Me
  • Store Pickup Available! Store Pickup Available!
  • Free Ship Over 5000 BDT Free Ship Over 5000 BDT
  • Quality Product Quality Product
  • No Warranty No Warranty
  • No Replacement No Replacement

These are [Selected] mm 3D Printer Extruder Brass Nozzle which has outstanding quality and the best performance for DIY and professional systems. By simply adding a holder, you can assemble your own dual head extrusion. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. M7 thread design for easy installation and compatibility with various types of 3D printers
  2. Made of high-quality brass for durability and corrosion resistance
  3. Suitable for use with 1.75mm filament
  4. Available in various nozzle sizes to achieve different printing results
  5. Precision machined for accurate and consistent extrusion
  6. Non-stick coating for improved performance and reduced clogging
  7. Compatible with various types of 3D printing materials, including PLA, ABS, and PETG

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

  1. This 3D printer nozzle is ideal for use in various types of 3D printing applications, including rapid prototyping, manufacturing, and hobbyist projects.
  2. It can be used with various types of 3D printing materials, making it a versatile and reliable solution for all your 3D printing needs.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Filament Support 1.75mm
Material High-quality Brass
Color Brass color
Nozzle Accuracy [Please select]
Screw Outer Diameter M7
Length (mm) 13
Width (mm) 10
Weight (gm) 3
Shipment Weight 0.005 kg
Shipment Dimensions 3 × 2 × 1 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

Nozzle Selection Guide by RoboticsBD

The choice of nozzle for 3D printing depends on a few factors, including the desired level of detail, the speed of printing, and the type of material being used. Here are some general guidelines for selecting a nozzle size:

For high-resolution prints with fine details, use a nozzle with a smaller diameter, such as the 0.2mm or 0.4mm nozzle. These smaller nozzles are better suited for printing small, intricate parts with high precision.

For faster printing speeds or larger parts that do not require fine detail, a larger nozzle diameter can be used. The 0.6mm or 0.8mm nozzle may be a good choice for this type of printing.

For very large prints or rapid prototyping, a 1.0mm nozzle can be used to speed up the printing process, but the resulting prints may have a lower level of detail.

Here is an example of when to use each nozzle size:

  1. 0.2mm nozzle: This nozzle is best used for printing very small, detailed objects, such as miniature figurines or jewelry. It allows for intricate details and smooth surfaces, but it can take a long time to print.
  2. 0.4mm nozzle: This is the most common nozzle size and is a good all-purpose choice. It can be used for printing a wide range of objects, including small parts with some detail and larger parts with less detail.
  3. 0.6mm nozzle: This nozzle is good for larger parts that do not require a high level of detail. It can print faster than the smaller nozzles but may have some visible layer lines on the surface of the print.
  4. 0.8mm nozzle: This nozzle is even faster than the 0.6mm nozzle and can be used for printing larger parts that do not require fine detail. However, the resulting prints may have more visible layer lines.
  5. 1.0mm nozzle: This nozzle is best used for rapid prototyping or printing very large objects. It can print very quickly but the resulting prints will have a lower level of detail and more visible layer lines.

It's important to note that nozzle size is not the only factor that affects print quality. Other factors like print speed, layer height, and temperature also play a role in determining the final result. It's always a good idea to experiment with different settings to find the best combination for your particular project.

Package Includes:

1 x [Selected] 3D Printer Nozzle M7 Thread Brass 1.75mm

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

What is the price of 3D Printer Nozzle M7 Thread Brass 1.75mm in Bangladesh?

The latest price of 3D Printer Nozzle M7 Thread Brass 1.75mm in Bangladesh is BDT 190 You can buy the 3D Printer Nozzle M7 Thread Brass 1.75mm at best price from our RoboticsBD or visit RoboticsBD Office.

Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product.

Product Images are shown for illustrative purposes only and may differ from the actual product.
