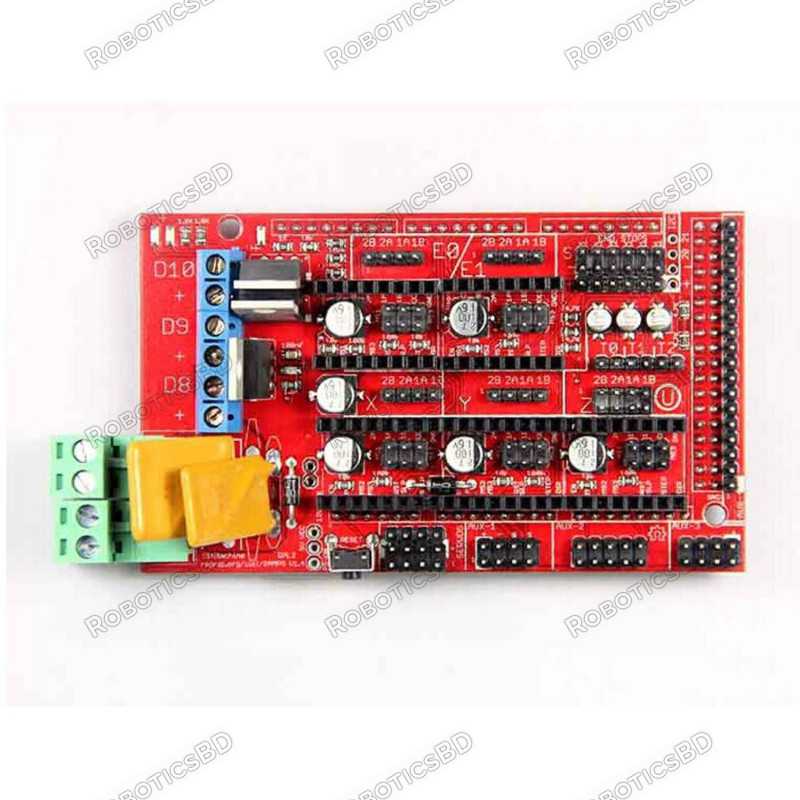

This is Mega Pololu Shield or RAMPS for short. The 3D Printer Controller Board RAMPS 1.4 is designed to fit the entire electronics needed for a RepRap in one small package for low cost. RAMPS interfaces an Arduino Mega with the powerful Arduino MEGA platform and has plenty of room for expansion.
RAMPS can only work when connected to its motherboard Mega 2560 and A4988/DRV8825. Owning to its stability in operation and great compatibility with the most 3D printer (all RepRap-model such as Prusa i2 and i3). The combination of Ramps1.4 + MEGA2560 + A4988/DRV8825 is becoming a mainstream of DIY 3D printer control board.
The modular design includes the plug in stepper drivers and extruder control electronics on an Arduino MEGA shield for easy service, part replacement, upgrade-ability, and expansion. Additionally, a number of Arduino expansion boards can be added to the system as long as the main RAMPS board is kept to the top of the stack.
Additionally, a number of Arduino expansion boards can be added to the system as long as the main RAMPS board is kept to the top of the stack. Ramps boards are the heart of most DIY 3D Printers on the market and a nice clean compact way to integrate all the systems into a compact enclosure mountable format.
| General Specification | |
| Input Supply Voltage (VDC) | 12 |
| Length (mm) | 100 |
| Width (mm) | 60 |
| Height (mm) | 26 |
| Weight (gm) | 60 |
| Shipment Weight | 0.064 kg |
| Shipment Dimensions | 12 × 6 × 4 cm |
1 x RAMPS 1.4 board, assembled.
15 x Step mode selection jumpers.
1 x 4-pin male power connector.
The latest price of 3D Printer Controller for RAMPS 1.4 REPRAP MENDEL PRUSA in Bangladesh is BDT 2,000 You can buy the 3D Printer Controller for RAMPS 1.4 REPRAP MENDEL PRUSA at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
