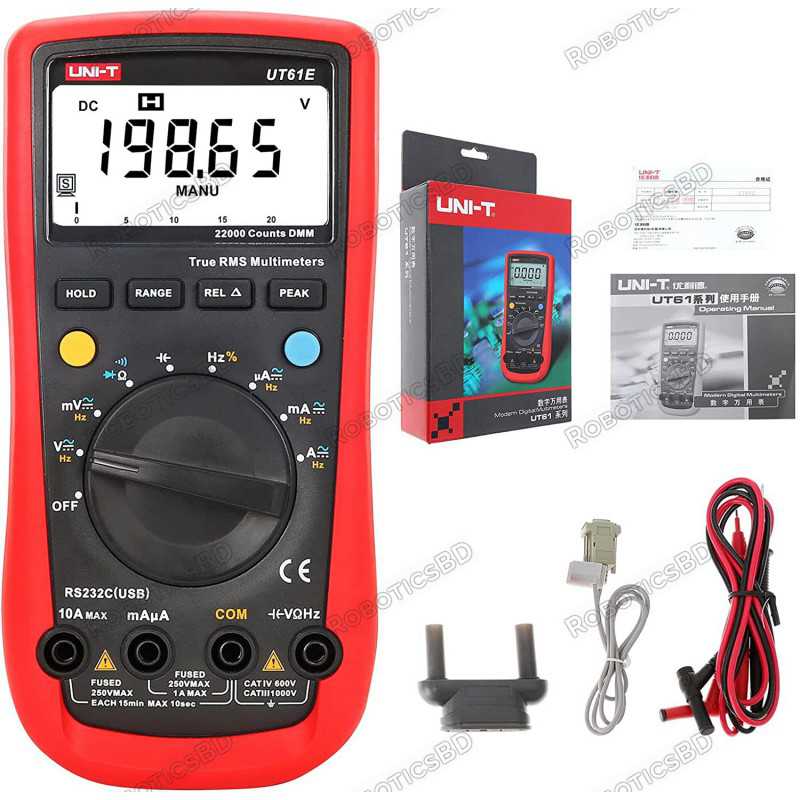

The UNI-T UT61E is a digital multimeter, which is a versatile and accurate tool used to measure various electrical values such as voltage, current, resistance, capacitance, frequency, and temperature.
The UT61E has a 4 5/6 digit LCD display and can measure AC/DC voltage up to 1000 volts, AC/DC current up to 10 amps, resistance up to 60 megaohms, capacitance up to 60 millifarads, frequency up to 100 MHz, and temperature up to 1000 degrees Celsius. It also has a continuity test function, a diode test function, and a data hold function.
The UT61E is powered by a 9-volt battery and is housed in a durable and ergonomic plastic case. It also features overload protection and is designed to meet the safety standards of EN61010-1, CAT III 1000V and CAT IV 600V.
The UT61E also has some additional features such as a relative measurement function, a peak value measurement function, a duty cycle measurement function, and a USB interface for connecting to a computer for data logging and analysis.
Overall, the UNI-T UT61E digital multimeter is a high-quality and versatile tool that can be used in a variety of applications, from basic electrical work to more advanced testing and analysis. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Models: UT61E
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Manufacturer | UNI-T |
| Type of meter | digital multimeter |
| Interface | RS232 |
| Measurement | AC current, AC voltage, capacitance, continuity, DC current, DC voltage, duty cycle, frequency, resistance |
| Kind of display used | barograph, LCD (22000) |
| DC voltage measuring range | 220mV/2.2V/22V/220V/1kV |
| DC voltage measuring accuracy | ±(0,1% + 2 digits) |
| AC voltage measuring range | 220mV/2.2V/22V/220V/750V |
| AC voltage measuring accuracy | ±(0,8% + 10 digits) |
| Bandwidth for AC voltage measurements | 45Hz...10kHz |
| DC current measuring range | 220µA/2200µA/22mA/220mA/10A |
| AC current measuring range (1) indirect measurement) |
220µA/2200µA/22mA/220mA/10A |
| DC current measuring accuracy | ±(0,5% + 10 digits) |
| AC current measuring accuracy | ±(0,8% + 10 digits) |
| Bandwidth for AC current measurements | 45Hz...10kHz |
| True effective value measurement | True RMS |
| Resistance measuring range | 220Ω/2.2kΩ/22kΩ/220kΩ/2.2MΩ/22MΩ/220MΩ |
| Resistance measuring accuracy | ±(0,5% + 10 digits) |
| Capacitance measuring range | 22nF/220nF/2.2µF/22µF/220µF/2.2mF/22mF/220mF |
| Capacitance measuring accuracy | ±(3% + 5 digits) |
| Frequency measuring range | 10...220MHz |
| Frequency measuring accuracy | ±(0,01% + 5 digits) |
| Duty cycle factor | 0.1...99.9% |
| Test | diodes |
| Weight with battery | 370g |
| Conform to the norm | EN61010 600V CAT IV, EN61010 1000V CAT III |
| Dimensions (W x H x D) | 87x180x47mm |
| Software | included |
| Shipment Weight | 0.673 kg |
| Shipment Dimensions | 22 × 16 × 6 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x UNI-T UT61E Digital Multimeter True RMS Peak PC Connect 22000 Counts Data Hold Auto Range
The latest price of UNI-T UT61E Digital Multimeter True RMS Peak PC Connect 22000 Counts Data Hold Auto Range in Bangladesh is BDT 9,560 You can buy the UNI-T UT61E Digital Multimeter True RMS Peak PC Connect 22000 Counts Data Hold Auto Range at best price from our RoboticsBD or visit RoboticsBD Office.
|
