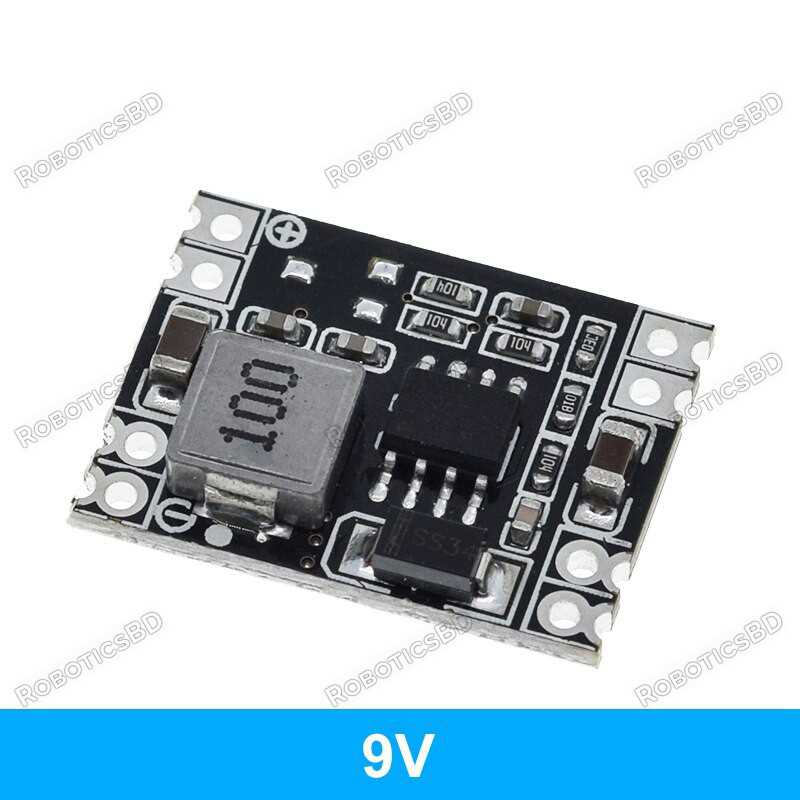

This mini DC-DC step-down voltage converter module supports 5-12 voltage input and 9V output with input polarity reverse protection and output overvoltage protection, short circuit protection.
It adopts synchronous rectification technology to ensure ultra-high power conversion of up to 97.5% to take full use of your input power.
Product Images are shown for illustrative purposes only and may differ from the actual product.
| General Specification | |
| Input Voltage | 5-12V |
| Input Mode | Soldering |
| Output Voltage | 9V |
| Maximum Output Current | 3A |
| Maximum Conversion Efficiency | 97.5% |
| Full load temperature | 30°C |
| Switching Frequency | 500KHz |
| Voltage Regulation | ±0.5% |
| Dynamic Response Speed | 5% 200uS |
| Shipment Weight | 0.014 kg |
| Shipment Dimensions | 4 × 3 × 1 cm |
Please allow 5% measuring deviation due to manual measurement.
1 x DC-DC 3A 5V-12V to 5V Step-down Power Supply Module
The latest price of DC-DC 3A Buck Step-down Power Supply Module 5V-12V to 9V Fixed Output in Bangladesh is BDT 160 You can buy the DC-DC 3A Buck Step-down Power Supply Module 5V-12V to 9V Fixed Output at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
