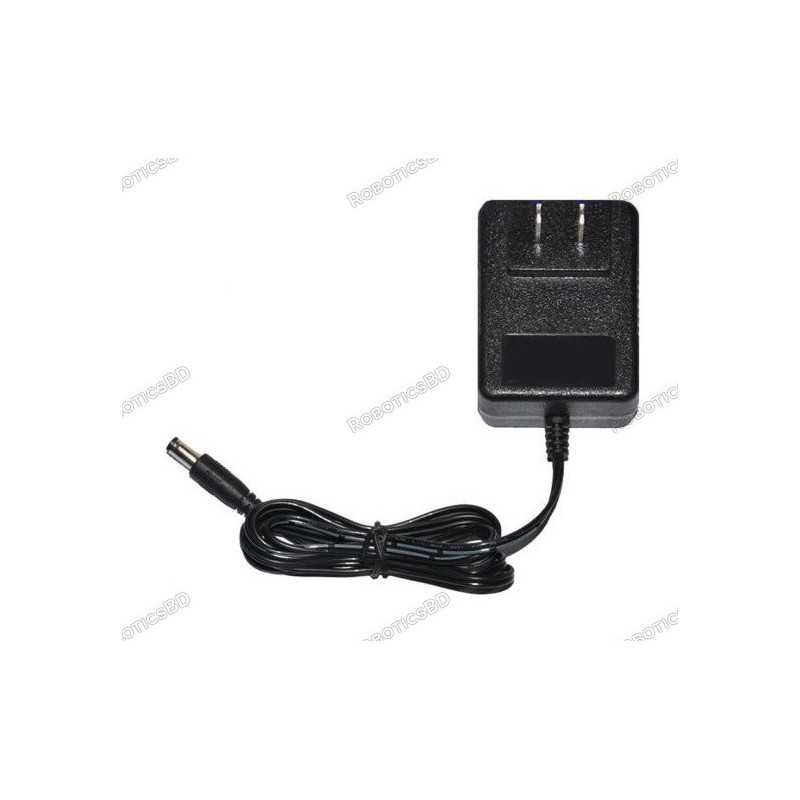

Choose the 1.5-Amp AC to 6-Volt DC Power Adapter for your home, office, or Project needs. You can use this AC to DC Power Adapter to power up your 6-volt appliances. It allows high-power 6-Volt DC items to operate on 110 to 240 Volt AC power which makes it ideal for traveling also.
This portable power converter is best for Arduino Boards, electronic prototypes, DIY projects, and other IoT development boards, as well as equipment with specific voltage and current ratings, such as biometric attendance systems, medical, and military devices. It is tiny and compact, making it easy to store. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
- 2-Pin US plug adapter is more convenient to plug.
- It comes with a 1 meter long 24 AWG cable
- Wide input AC voltage range (100VAC-240VAC).
- Very low ripple & noise output for device safety.
- High operating ambient temperature up to 80°C.
- Highly efficient, compact, durable, and long life.
- RoHS compliance Approved.
- Protections against- under-over voltage/ overload/ short circuit with auto-restart on fault removal.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
General Specification |
Rated input voltage |
100V AC to 240V AC |
Output Voltage(V) |
=+5V |
Max input current |
0.03A at 230V AC input 0.25A at 100V AC input |
Max Output Current (mA) |
1500 |
Efficiency |
73.6% Min at input 100-240V AC /60HZ frequency |
Rated frequency |
50/60Hz |
AC Socket |
US plug |
DC output plug |
DC Plug |
Color |
Black |
Operating Temperature (°C) |
2±40°C |
Cable Size (AWG) |
24 |
Cable Length (Meter) |
1 |
Weight (g) |
100 g+/-5g |
Product Dimensions |
85 x 70 x 50mm |
Shipment Weight |
0.10 kg |
Shipment Dimensions |
9 × 7 × 5 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes:
1 x 6V 1.5A Power Adapter with DC Plug
