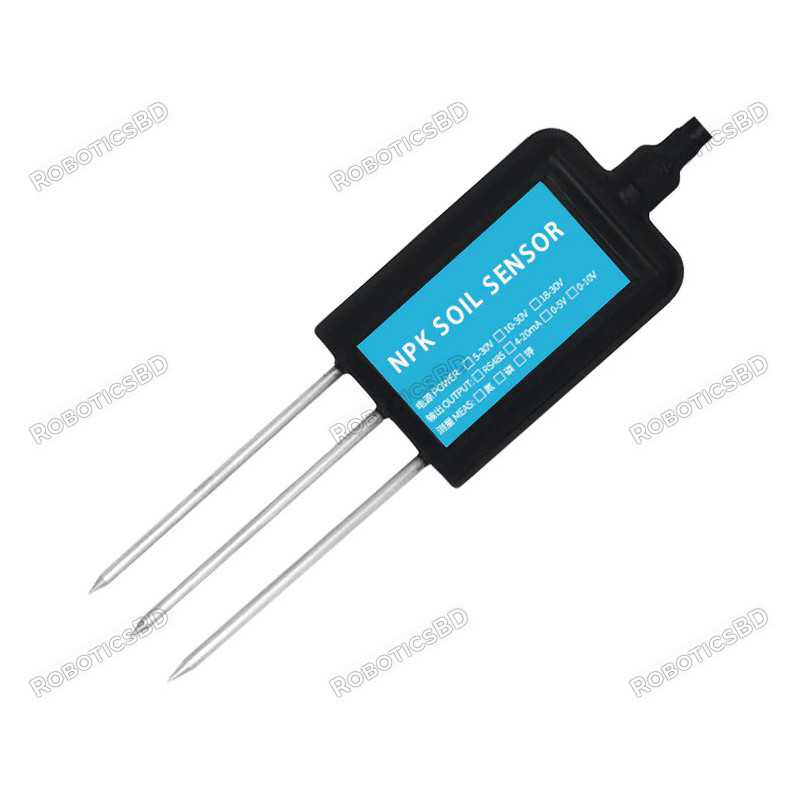

The soil NPK sensor is suitable for detecting the content of nitrogen, phosphorus, and potassium in the soil, and judging the fertility of the soil by detecting the content of N, P, and K in the soil. The stainless steel probe of the soil NPK sensor can be buried in the soil for a long time and is resistant to long-term electrolysis, salt, and alkali corrosion. The shell is vacuum potted and completely waterproof. Featured By RoboticsBD
Soil npk sensors are widely used in soil nitrogen, phosphorus and potassium detection, precision agriculture, forestry, soil research, geological prospecting, plant cultivation and other fields.
Product Images are shown for illustrative purposes only and may differ from the actual product.
| General Specification | |
| Measurement range | 0-199 mg/KG |
| Measurement accuracy | =+-2%F.s |
| Resolution | 1mg/KG (mg/L) |
| Response time (T90, s) | less than 10 |
| Operating temperature | 5 to 45°C |
| Working humidity | 5 to 95% (relative humidity), no condensation |
| Baud rate | 2400/4800/9600 |
| Communication port | RS485 |
| Power supply | 5V-24v DC |
| Sensor Cable length | 1.2 meters |
| Shipment Weight | 0.150 kg |
| Shipment Dimensions | 18 × 18 × 6 cm |
1 x Soil NPK Sensor Agricultural
The latest price of Soil NPK Sensor Agricultural in Bangladesh is BDT 11,990 You can buy the Soil NPK Sensor Agricultural at best price from our RoboticsBD or visit RoboticsBD Office.
|
