Color Rings: The first two of these represent a two-digit significant number. The third band represents the multiplier. The inductance is calculated by multiplying the significant number by ten to the power of the value of the third band. The fourth band represents the tolerance. RoboticsBD
Small inductors having high Q and low distributed capacity. Excellent for use where space, weight and size is a factor. RoboticsBD
Axially leaded inductors with a 10% tolerance suitable for a wide range applications including decoupling, filtering and blocking.
These fixed inductors are coated with epoxy resin ensures humidity resistance for long life. Fixed inductor uses multiple coils of a conducting material to store energy using a magnetic field. RoboticsBD
For low current and low power are made in cases resembling resistors. These may be either plain (phenolic) core or ferrite core. An ohmmeter readily distinguishes them from similar-sized resistors by showing the low resistance of the inductor. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Inductance: |
100uH |
| Power： |
1/2W |
| Tolerance: |
10% |
| Maximum DC Current: |
2.52A |
| Maximum DC Resistance: |
30ohm |
| Self Resonant Frequency: |
4.8Hz |
| Body Size: |
4x11mm |
| Shipment Weight |
0.005 kg |
| Shipment Dimensions |
3 × 3 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
- Datasheet
Package Includes:

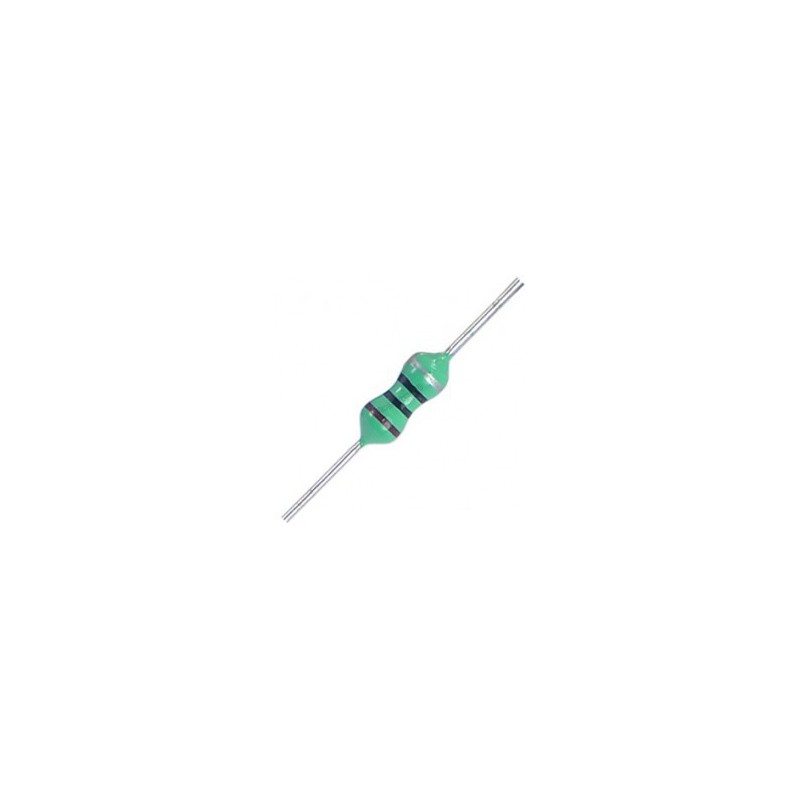

1 x 100uH 0.5W Color Ring Inductor.
