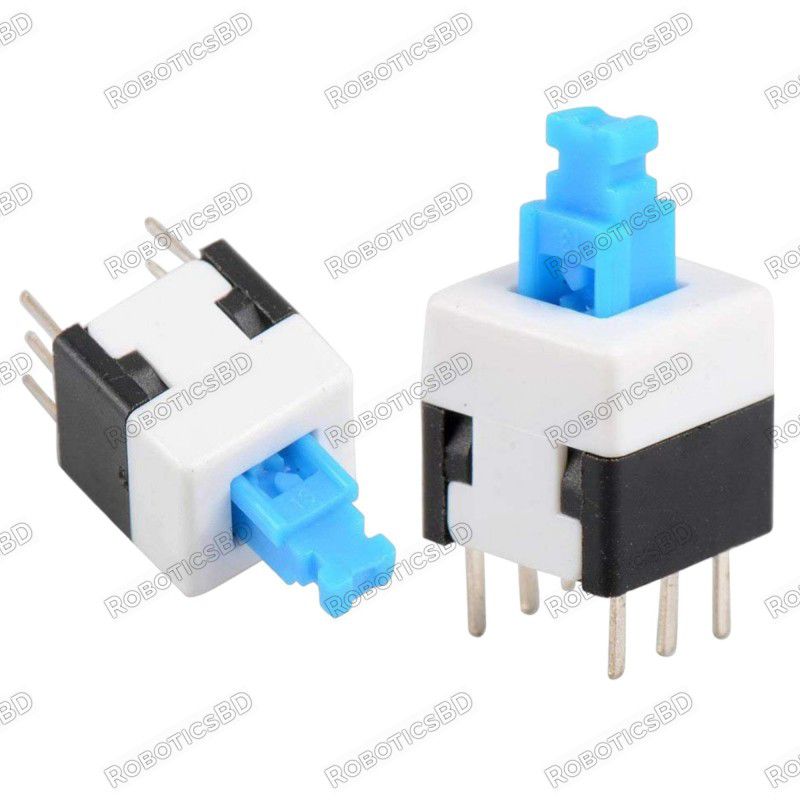

This 7×7 mm 5 Pin DPDT latching Push switch” is also named “Mini Telephone Switch and Mini DPDT Push Switch”
This is a Momentary Switch The mini push button 5 pin switch is useful in controlling power connections most of the time. The blue colored square push button is DIP through-hole for mounting on PCB.
This 7x7mm 5 Pin DPDT latching Push switch has a High-precision mechanism design, perfect operation and long service life. Mostly used in electronic products, household appliances dashboard and other fields. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Rating | DC 30V, 0.1A |
| Circuit | DPDT |
| Operation force | 1.8N±0.3N |
| Operating Temperature Range | -5~35℃ |
| Travel | Full 1.8 |
| Material | Plastic and metal |
| Contact Resistance | 100mΩ max |
| Heat Resistance | 80±2℃,72h |
| Moisture resistance | 72h,40±2℃ |
| Operation life | 10,000 cycles |
| Shipment Weight | 0.01 kg |
| Shipment Dimensions | 4 × 4 × 1 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x 7x7mm 5 Pin DPDT latching Push Switch.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of 7x7mm latching Push Telephone Switch in Bangladesh is BDT 10 You can buy the 7x7mm latching Push Telephone Switch at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
