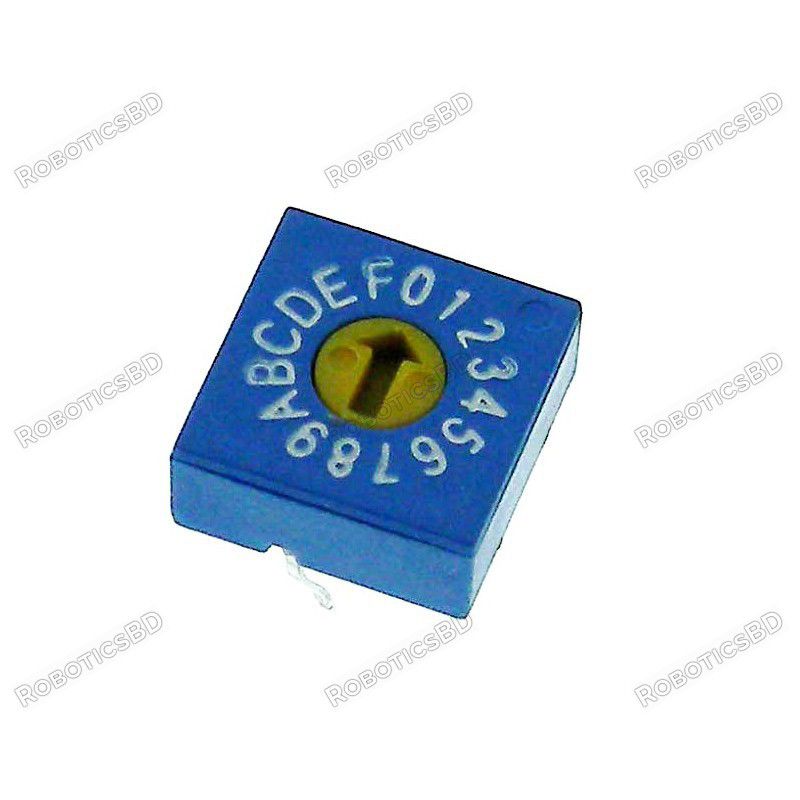

The 0-F 16Bit Rotary Coding Dial Switch is a versatile and compact DIP switch designed for customizable control and configuration within electronic circuits. Offering 16 distinct positions (0 to F), this rotary DIP switch is perfect for applications where a simple and reliable manual selection is needed.
Built for through-hole mounting, with 2.54mm terminal pitch and 7.62mm row spacing, this switch ensures easy integration into standard PCBs. With a high mechanical life of up to 2000 cycles, gold-plated contacts for excellent conductivity, and complete environmental sealing, it provides robust and reliable performance even in demanding conditions. Ideal for address setting, function selection, and configuration in electronic systems, industrial control, and instrumentation.
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement
The 0-F 16Bit Rotary Coding Dial Switch is a versatile and compact DIP switch designed for customizable control and configuration within electronic circuits. Offering 16 distinct positions (0 to F), this rotary DIP switch is perfect for applications where a simple and reliable manual selection is needed.
Built for through-hole mounting, with 2.54mm terminal pitch and 7.62mm row spacing, this switch ensures easy integration into standard PCBs. With a high mechanical life of up to 2000 cycles, gold-plated contacts for excellent conductivity, and complete environmental sealing, it provides robust and reliable performance even in demanding conditions. Ideal for address setting, function selection, and configuration in electronic systems, industrial control, and instrumentation.
16-position rotary switch (0–F) for easy manual configuration
DIP package design suitable for standard PCB layouts
Through-hole mounting with 2.54mm pin pitch for secure connection
Gold-plated contacts ensure low resistance and long service life
Mechanical life of 2000 cycles for durable and reliable operation
Complete sealing construction for dust and contamination resistance
High insulation resistance and dielectric strength for improved safety
Compact footprint, ideal for space-limited designs
Number of Positions: 16 (0-F)
Actuator Style: Rotary DIP
Maximum Voltage Rating: 24V DC
Maximum Current Rating: 0.025A at 24VDC
Non-Switching Current Rating: Up to 100mA
Contact Plating: Gold
Dielectric Strength: 250VAC
Maximum Contact Resistance: 100mΩ
Minimum Insulation Resistance: 1000MΩ
Mechanical Life: 2000 cycles
Seal Description: Complete Environmental Seal
Body Orientation: Straight
Mounting Type: Through Hole
Terminal Type: PC Pins
Terminal Pitch: 2.54mm
Row Space: 7.62mm
Total Pitch: 12.7mm
Operating Temperature Range: -25°C to +70°C
Product Dimensions:
Length: 10mm
Depth: 10mm
Height: 5.4mm
Mount the switch onto a standard PCB via through-hole soldering.
Use a screwdriver or finger to rotate the actuator to the desired setting (0-F).
Read the switch position electronically via the connected pins.
Use the selected position to control addressing, mode selection, or configuration in your circuit.
Address selection for communication systems
Configuration settings for industrial controllers
Mode selection for embedded systems
DIP-based code selection for access systems
Settings adjustments in test and measurement equipment
1 x 0-F 16Bit Rotary Coding Dial Switch – DIP
Simple and reliable manual control for electronic devices
Durable and sealed construction for enhanced reliability
Easy PCB integration with standard spacing
Long operational life ensures stable, long-term performance
Ideal for address and mode settings in compact designs
Customize and configure your electronic projects easily with the 0-F 16Bit Rotary Coding Dial Switch – DIP.
Order now to add reliable and compact manual switching functionality to your next project!
The latest price of 0-F 16Bit Rotary Coding Dial Switch – DIP in Bangladesh is BDT 150 You can buy the 0-F 16Bit Rotary Coding Dial Switch – DIP at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
