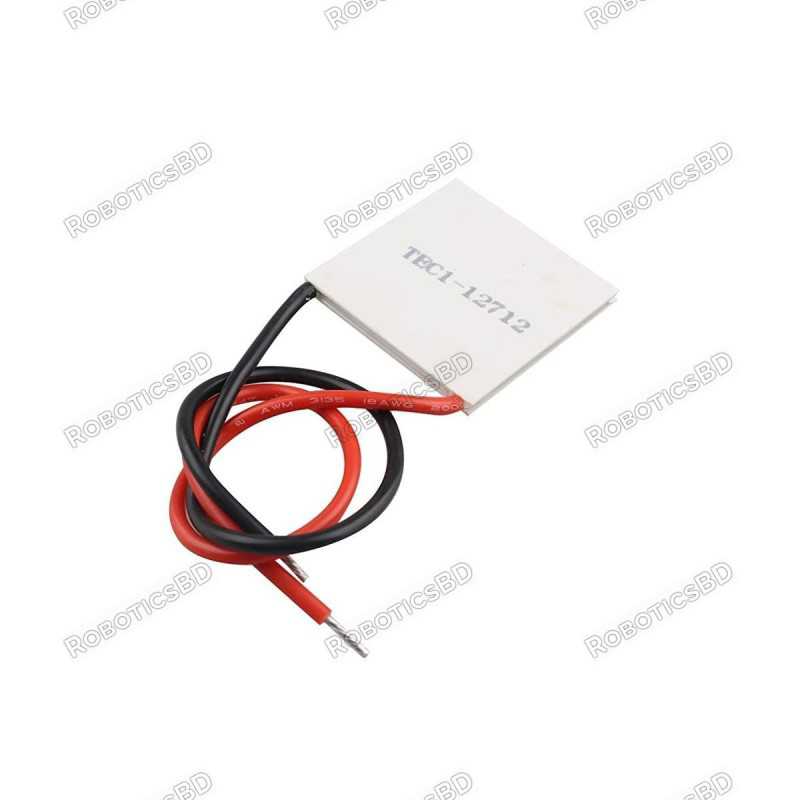

The TEC1-12712 Thermoelectric Cooler Module is a compact, versatile, and reliable Peltier module that leverages the thermoelectric effect for efficient cooling and heating. Featuring 127 semiconductor couples, it can create a significant temperature differential, making it ideal for precision applications such as cooling CPUs, CCDs, or medical instruments. With a robust design offering a long life expectancy of up to 200,000 hours, this module ensures consistent performance. Easy to install and operate, it requires a heat sink for optimal efficiency and allows seamless switching between heating and cooling by reversing polarity. Perfect for DIY projects, industrial applications, and scientific research. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications | |
| Model Number | TEC1-12712 |
| Operating Voltage | 12V |
| Maximum Voltage (Vmax) | 15V |
| Maximum Current (Imax) | 12A |
| Maximum Power | 109W |
| Internal Resistance | 4.0 ~ 4.3Ω |
| Temperature Range | -55°C to 80°C |
| Life Expectancy | 200,000 hours |
| Material | Solid-state semiconductor |
| Dimensions | 40mm x 40mm |
| Shipment Weight | 0.021 kg |
| Shipment Dimensions | 4 x 4 x 2 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x Thermoelectric Cooler Peltier Module TEC1-12712
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of Thermoelectric Cooler Peltier Module TEC1-12712 in Bangladesh is BDT 540 You can buy the Thermoelectric Cooler Peltier Module TEC1-12712 at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
